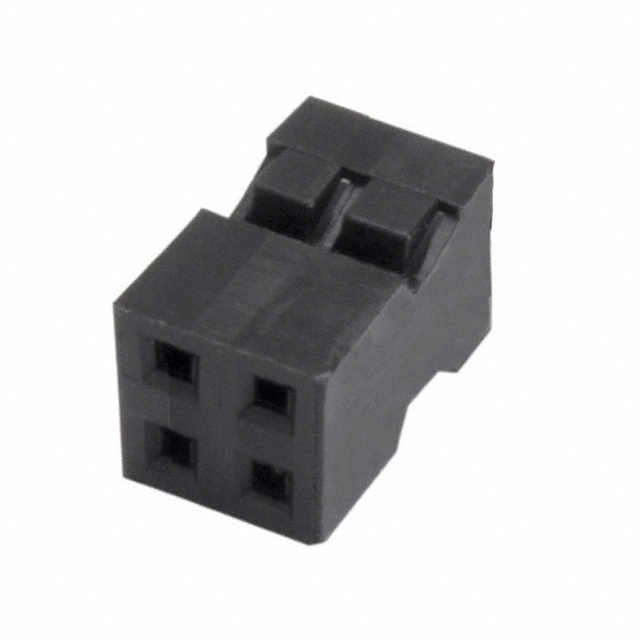

M22-3020200

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Orientation :

Straight

Wire Gauge (Max) :

30 AWG

Mount :

Free Hanging

Radiation Hardening :

No

MIL Conformance :

No

IEC Conformance :

No

Note :

Contacts Not Included

Number of Positions :

4

Body Breadth :

0.165 inch

Dielectric Withstanding Voltage :

1500VAC V

Reference Standard :

UL

Max Operating Temperature :

105°C

Max Current Rating :

1A

Contact Gender :

FEMALE

Wire Gauge (Min) :

24 AWG

Housing Material :

Nylon

Mixed Contacts :

No

Number of Rows :

2

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Current Rating :

2A

Width :

4.1mm

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-40°C

Connector Type :

Receptacle

Option :

GENERAL PURPOSE

Filter Feature :

No

REACH SVHC :

No SVHC

Series :

M22

Row Spacing :

0.079 (2.00mm)

Contact Termination :

Crimp

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Total Number of Contacts :

4

Published :

2001

Pitch :

0.079 2.00mm

Contact Type :

Female Socket

Contact Material :

Bronze

Max Voltage Rating (AC) :

250V

Mounting Type :

Free Hanging (In-Line)

DIN Conformance :

No

Depth :

7.1mm

Factory Lead Time :

12 Weeks

Rated Current (Signal) :

2A

Insulation Resistance :

5000000000Ohm

Reliability :

COMMERCIAL

Length :

4.2mm

Color :

Black
