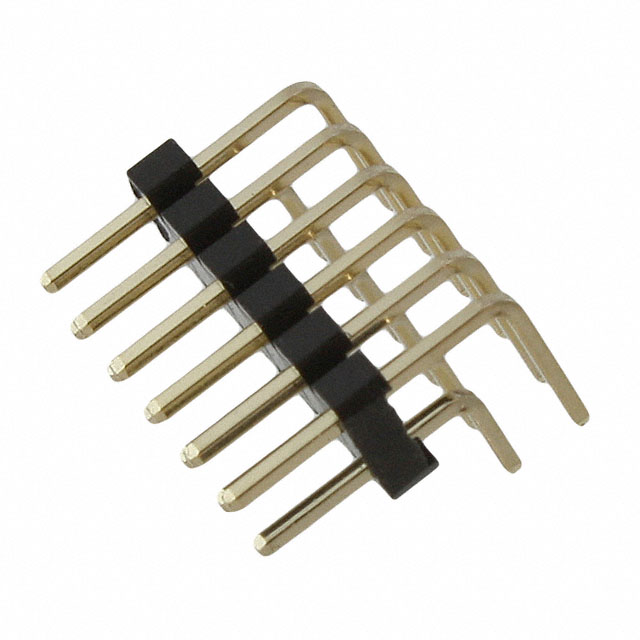

M22-2540605

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Shape :

Square

Pitch - Mating :

0.079 2.00mm

Filter Feature :

No

Contact Type :

Male Pin

Row Spacing - Mating :

0.079 (2.00mm)

Fastening Type :

Push-Pull

Reliability :

COMMERCIAL

Voltage - Rated :

650V

IEC Conformance :

No

Depth :

8.75mm

RoHS Status :

ROHS3 Compliant

Durability :

300 Cycles

Additional Feature :

RoHS Compliant

Factory Lead Time :

13 Weeks

Number Of PCB Rows :

2

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Number of Conductors :

ONE

Number of Positions :

12

Contact Resistance :

15mOhm

Current Rating :

1A

Insulation Resistance :

1000000000Ohm

Insulation Material :

Polyamide (PA6T), Nylon 6T

ECCN Code :

EAR99

Packaging :

Bulk

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Published :

2013

Gender :

Male

UL Flammability Code :

94V-0

Housing Material :

Nylon

Pbfree Code :

yes

DIN Conformance :

No

Contact Length - Post :

0.094 2.40mm

Current Rating (Amps) :

2A

Connector Type :

Header, Cuttable

Max Current Rating :

1A

Style :

Board to Board

MIL Conformance :

No

Termination :

Solder

HTS Code :

8536.69.40.40

Contact Finish - Mating :

Gold

Mounting Type :

Through Hole, Right Angle

Contact Material :

Phosphor Bronze

Series :

M22

Mating Contact Pitch :

0.079 inch

Length :

12mm

Orientation :

RIGHT ANGLE

Contact Length - Mating :

0.138 3.50mm

Operating Temperature :

-40°C~105°C

JESD-609 Code :

e4

Shrouding :

Unshrouded

Insulation Height :

0.157 4.00mm

Mount :

Through Hole

Reference Standard :

UL

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body Breadth :

0.157 inch

Housing Color :

Black

PCB Contact Pattern :

RECTANGULAR
