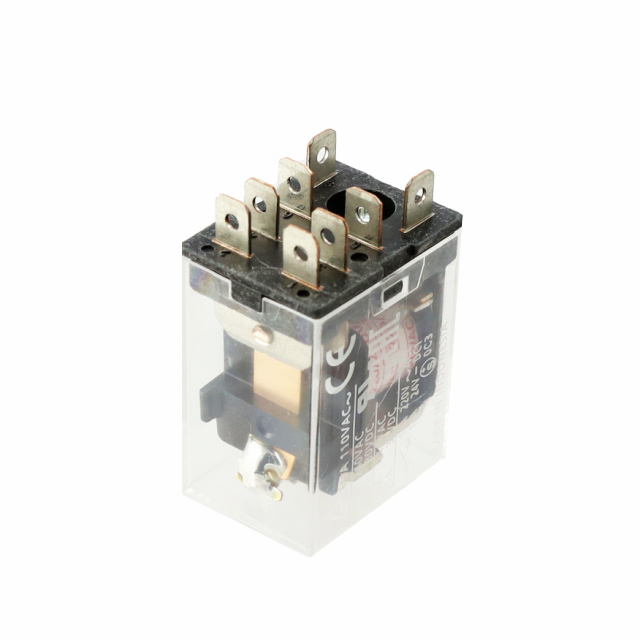

LY1N-AC110/120
Or copy the link below:
- Mfr.Part #
- LY1N-AC110/120
- Manufacturer
- Omron Automation
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE SPDT 15A 120V
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Automation
- Product Category :
- Power Relays, Over 2 Amps
- Termination :
- Quick Connect
- Radiation Hardening :
- No
- Coil Power :
- 1.1W
- Length :
- 21.59mm
- Max Voltage Rating (AC) :
- 250V
- Reference Standard :
- CE; CSA; TUV; UL
- Height :
- 36.06mm
- Width :
- 27.94mm
- Pbfree Code :
- yes
- Must Operate Voltage :
- 96VAC
- Power Consumption :
- 1.1W
- Coil Voltage :
- 120VAC
- Release Time :
- 25 ms
- Packaging :
- Bulk
- Depth :
- 21.5mm
- Series :
- LY
- Coil Current :
- 9.2mA
- Operating Temperature :
- -25°C~55°C
- Max Current Rating :
- 15A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2003
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- CSA, UL, VDE
- Max Voltage Rating (DC) :
- 125V
- Number of Pins :
- 8
- Operate Time :
- 25ms
- Contact Form :
- SPDT (1 Form C)
- Feature :
- Lighted Indicator
- Contact (DC) Max Rating R Load :
- 15A@24VDC
- Lead Free :
- Lead Free
- Coil Type :
- Non Latching
- Mount :
- Brackets, Plug-In, Socket
- Coil Resistance :
- 4.43kOhm
- Contact Material :
- Silver Alloy
- Relay Type :
- GENERAL PURPOSE
- Mounting Type :
- Socketable
- Additional Feature :
- COIL OPERATE VOLTAGE(AC): 96 V, COIL RELEASE VOLTAGE(AC): 36 V
- ECCN Code :
- EAR99
- REACH SVHC :
- Unknown
- Voltage - Rated AC :
- 250V
- Must Release Voltage :
- 36VAC
- Contact (AC) Max Rating R Load :
- 15A@110VAC
- Relay Action :
- Momentary
- Current Rating :
- 15A
- Termination Style :
- Plug In
- Throw Configuration :
- SPDT
- Physical Dimension :
- 27.94mm x 21.59mm x 36.06mm
- Coil/Input Supply Type :
- AC
- Contact/Output Supply Type :
- AC/DC
- Coil Voltage (AC) :
- 120V
- Switching Voltage :
- 250VAC 125VDC -Max
- Datasheets
- LY1N-AC110/120
