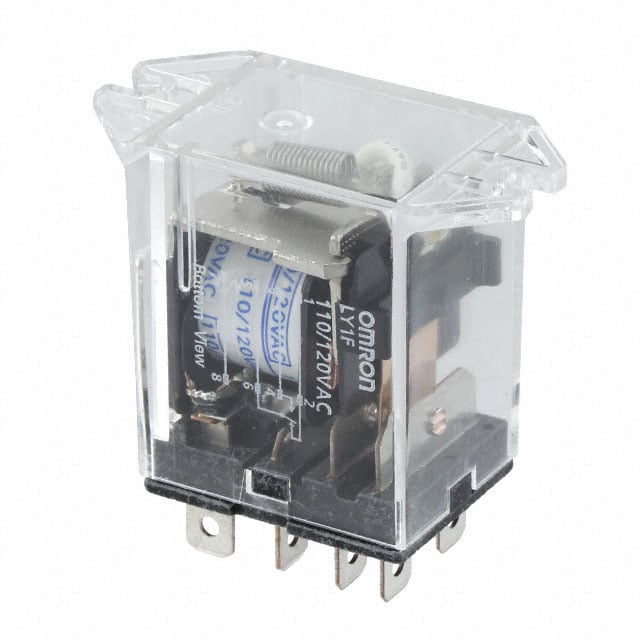

LY1F-AC110/120

Share

Or copy the link below:

Mfr.Part #
LY1F-AC110/120
Manufacturer
Omron Automation
Package / Case
120
Datasheet
Download
Description
RELAY GEN PURPOSE SPDT 15A 120V
Stock
17,039
In Stock :
17,039

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Omron Automation
Product Category :
Power Relays, Over 2 Amps
Pbfree Code :
yes
Coil Power :
1.1W
Max Current Rating :
15A
Lead Free :
Lead Free
Coil Resistance :
4.43kOhm
Coil Current :
9.2mA
Additional Feature :
COIL OPERATE VOLTAGE(AC): 96 V, COIL RELEASE VOLTAGE(AC): 36 V
Throw Configuration :
SPDT
Series :
LY
Voltage - Rated AC :
250V
Termination Style :
Plug In
Relay Type :
GENERAL PURPOSE
Mount :
Flanges, Plug-In, Socket
Coil/Input Supply Type :
AC
Current Rating :
15A
Operate Time :
25ms
Power Consumption :
1.1W
Depth :
22.5mm
Contact (DC) Max Rating R Load :
15A@24VDC
Package / Case :
120
Must Release Voltage :
36VAC
ECCN Code :
EAR99
RoHS Status :
RoHS Compliant
Width :
22.6mm
Mounting Type :
Chassis Mount
Height :
35.56mm
Coil Type :
Non Latching
Must Operate Voltage :
96VAC
Coil Voltage (AC) :
120V
Length :
43.94mm
Release Time :
25 ms
Operating Temperature :
-25°C~55°C
Switching Voltage :
250VAC 125VDC -Max
Relay Action :
Momentary
Termination :
Quick Connect
Packaging :
Bulk
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Material :
Silver Alloy
Radiation Hardening :
No
Physical Dimension :
43.94mm x 22.6mm x 35.56mm
REACH SVHC :
Unknown
Factory Lead Time :
7 Weeks
Published :
2003
Contact (AC) Max Rating R Load :
15A@110VAC
Contact Form :
SPDT (1 Form C)
Coil Voltage :
120VAC
Approval Agency :
CSA, UL, VDE
Contact/Output Supply Type :
AC/DC
Max Voltage Rating (DC) :
125V
Reference Standard :
CE; CSA; TUV; UL
Number of Pins :
8
Max Voltage Rating (AC) :
250V
Introducing Power Relays, Over 2 Amps Omron Automation LY1F-AC110/120 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:120, Mounting Type:Chassis Mount, Operating Temperature:-25°C~55°C, Number of Pins:8, LY1F-AC110/120 pinout, LY1F-AC110/120 datasheet PDF, LY1F-AC110/120 amp .Beyond Power Relays, Over 2 Amps Omron Automation LY1F-AC110/120 ,we also offer MY4 DC24 (S), MY4 DC12 (S), ST2-DC5V-F, Our vast inventory has you covered. Contact us now for immediate solutions.
