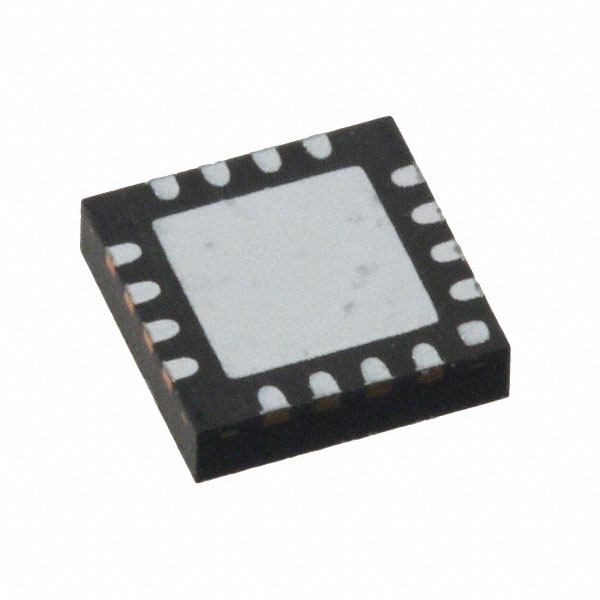

LX1744CLQ

Manufacturer :

Microsemi

Product Category :

LED Drivers

Terminal Position :

QUAD

Height Seated (Max) :

1mm

Voltage - Output :

25V

Operating Temperature :

-40°C~85°C TA

Pbfree Code :

yes

Length :

4mm

Type :

DC DC Controller

Internal Switch(s) :

No

Published :

2004

Number of Pins :

16

Pin Count :

16

JESD-609 Code :

e3

Peak Reflow Temperature (Cel) :

260

Package / Case :

16-VQFN Exposed Pad

Terminal Finish :

MATTE TIN

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Supply (Min) :

1.6V

RoHS Status :

RoHS Compliant

ECCN Code :

EAR99

Multiplexed Display Capability :

No

Dimming :

Analog, PWM

Base Part Number :

LX1744

Number of Outputs :

2

Voltage - Supply (Max) :

6V

Packaging :

Tube

Number of Segments :

1

Number of Functions :

1

Supply Voltage :

3V

Topology :

Step-Up (Boost)

Mounting Type :

Surface Mount

Terminal Pitch :

0.65mm

Width :

4mm

Mount :

Surface Mount

Lifecycle Status :

OBSOLETE (Last Updated: 3 weeks ago)

Time@Peak Reflow Temperature-Max (s) :

40

Number of Terminations :

16

Lead Free :

Lead Free

Applications :

Backlight
