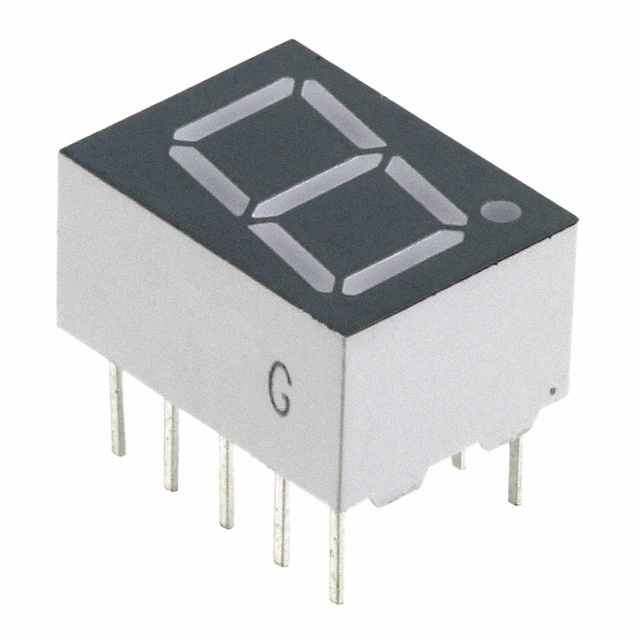

LTS-4801JD

Manufacturer :

LITEON

Product Category :

Number of Elements :

8

Color :

Red

Forward Current :

25mA

Character Width :

9.906mm

RoHS Status :

ROHS3 Compliant

Viewing Area (height) :

10mm

Operating Supply Voltage :

2.6V

Current - Test :

20mA

Voltage - Forward (Vf) (Typ) :

2.1V

Max Operating Temperature :

85°C

Min Operating Temperature :

-35°C

Mount :

Through Hole

Millicandela Rating :

0.65mcd

Number of Functions :

1

Published :

2011

Digit/Alpha Size :

0.39 10.00mm

Dominant Wavelength :

639 nm

Element Configuration :

Common Anode

Height :

12.9032mm

Luminous Intensity :

650 µcd

Reverse Voltage :

5V

Radiation Hardening :

No

Factory Lead Time :

12 Weeks

Power Dissipation :

70mW

Number of Pins :

10

Depth :

9.7mm

Number of Characters :

1

Package / Case :

10-DIP (0.300, 7.62mm)

Display Type :

7-Segment

Power Consumption :

70mW

Packaging :

Tube

Common Pin :

Common Anode

Size / Dimension :

0.508 Hx0.382W x 0.276 D 12.90mmx9.70mmx7.00mm

Wavelength - Peak :

650nm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
