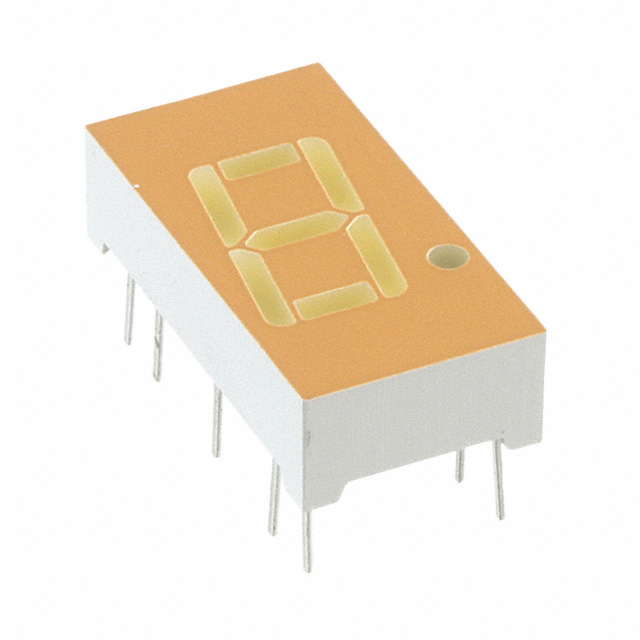

LTS-4640AE

Manufacturer :

LITEON

Product Category :

Depth :

9.8mm

Display Type :

7-Segment

Voltage - Forward (Vf) (Typ) :

2V

Factory Lead Time :

10 Weeks

Max Operating Temperature :

85°C

Radiation Hardening :

No

Number of Characters :

1

Viewing Area (height) :

10.16mm

Element Configuration :

Common Cathode

Forward Current :

25mA

Size / Dimension :

0.738 Hx0.386W x 0.200 D 18.75mmx9.80mmx5.08mm

Height :

4.064mm

RoHS Status :

RoHS Compliant

Common Pin :

Common Cathode

Additional Feature :

IC COMPATIBLE

Published :

2010

Packaging :

Tube

Min Operating Temperature :

-35°C

Number of Functions :

1

JESD-609 Code :

e0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Elements :

8

Power Dissipation :

75mW

Reverse Voltage :

5V

Current - Test :

20mA

Luminous Intensity :

2.2 mcd

Lead Free :

Lead Free

Wavelength - Peak :

630nm

Digit/Alpha Size :

0.40 10.16mm

Illumination Color :

Orange, Red

Terminal Finish :

Tin/Lead (Sn/Pb)

Character Width :

10.16mm

Dominant Wavelength :

621 nm

Operating Supply Voltage :

2.6V

Package / Case :

14-DIP (0.300, 7.62mm)

Number of Pins :

14

Mount :

Through Hole

Color :

Orange-Red
