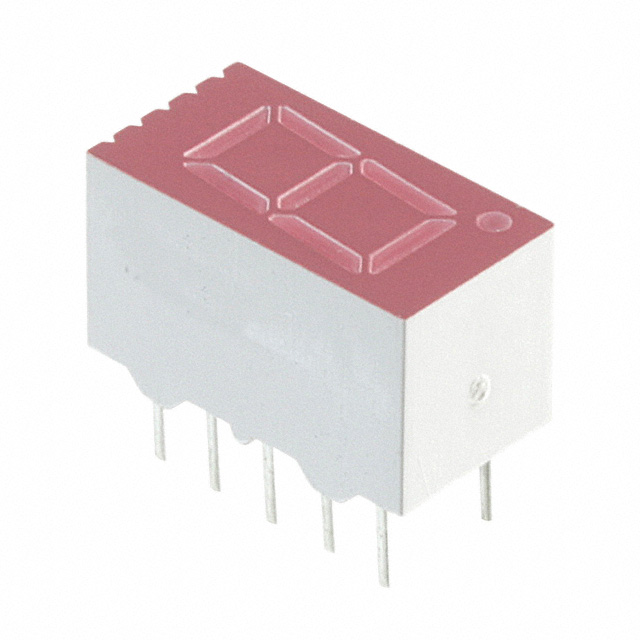

LTS-360HR

Manufacturer :

LITEON

Product Category :

Depth :

7.5mm

Common Pin :

Common Anode

Lead Free :

Lead Free

Current - Test :

20mA

Operating Supply Voltage :

2.6V

Max Operating Temperature :

85°C

Reverse Voltage :

5V

Packaging :

Tube

Color :

Red

Size / Dimension :

0.551 Hx0.291W x 0.332 D 14.00mmx7.40mmx8.44mm

Height :

8.382mm

Additional Feature :

IC COMPATIBLE

Peak Reverse Current :

100μA

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Elements :

8

Viewing Area (height) :

9.1mm

Luminous Intensity :

2 mcd

Element Configuration :

Common Anode

Package / Case :

10-DIP (0.200, 5.08mm)

Power Dissipation :

75mW

Number of Characters :

1

Digit/Alpha Size :

0.36 9.14mm

Mount :

Through Hole

Published :

2000

Character Width :

9.144mm

Voltage - Forward (Vf) (Typ) :

2V

RoHS Status :

ROHS3 Compliant

Wavelength - Peak :

635nm

Display Type :

7-Segment

Dominant Wavelength :

623 nm

Number of Pins :

10

Factory Lead Time :

12 Weeks

Min Operating Temperature :

-35°C

Forward Current :

25mA

ECCN Code :

EAR99

Radiation Hardening :

No
