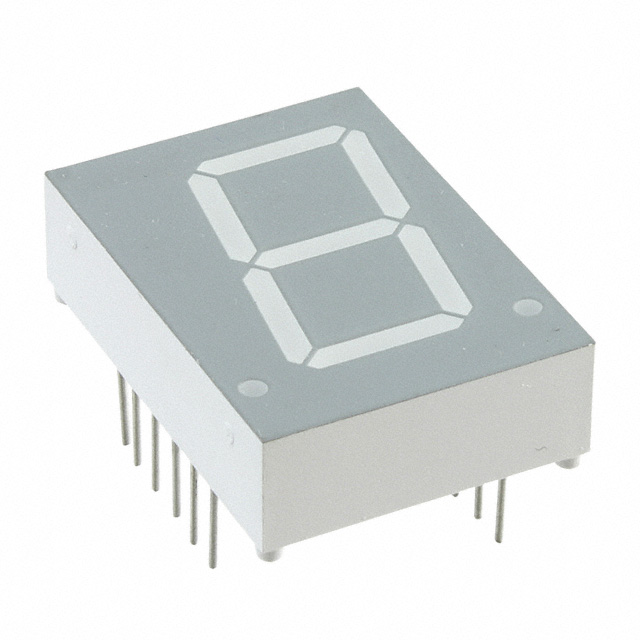

LTS-3403LE

Manufacturer :

LITEON

Product Category :

Element Configuration :

Common Cathode

Depth :

19.9mm

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

High Reliability

Max Operating Temperature :

85°C

Packaging :

Tube

Height :

27.686mm

JESD-609 Code :

e3

Viewing Area (height) :

20.32mm

Terminal Finish :

Tin (Sn)

Size / Dimension :

1.090 Hx0.783W x 0.330 D 27.69mmx19.90mmx8.38mm

Illumination Color :

Orange

Number of Pins :

18

Luminous Intensity :

2.4 mcd

Forward Current :

20mA

Optoelectronic Device Type :

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Common Pin :

Common Cathode

Number of Characters :

1

Number of Elements :

8

Factory Lead Time :

12 Weeks

Power Consumption :

75mW

Mount :

Through Hole

Digit/Alpha Size :

0.80 20.32mm

Min Operating Temperature :

-35°C

Pbfree Code :

yes

Display Type :

7-Segment

Color :

Orange-Red

Wavelength - Peak :

630nm

Voltage - Forward (Vf) (Typ) :

2V

Operating Supply Voltage :

2.6V

Character Width :

20.32mm

Dominant Wavelength :

621 nm

Package / Case :

18-DIP (0.600, 15.24mm), 13 Leads

Power Dissipation :

75mW

Reverse Voltage :

5V

Published :

2010

RoHS Status :

ROHS3 Compliant
