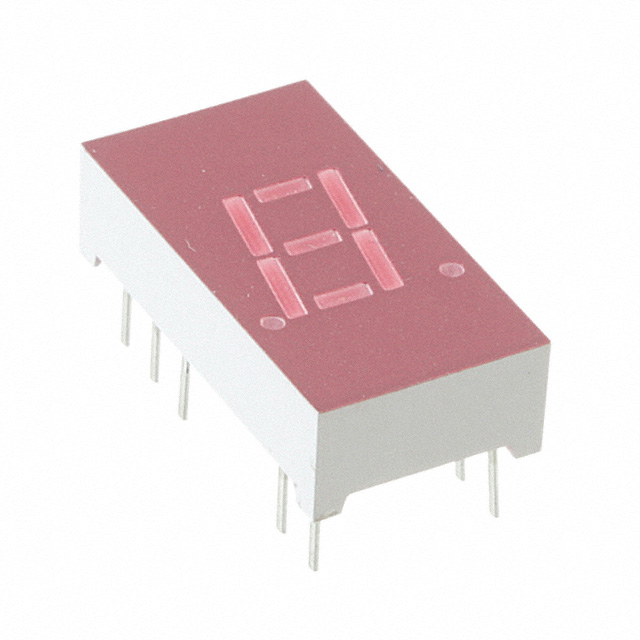

LTS-312AHR

Manufacturer :

LITEON

Product Category :

Forward Voltage :

2V

Reverse Voltage :

5V

Size / Dimension :

0.738 Hx0.388W x 0.200 D 18.75mmx9.85mmx5.08mm

Radiation Hardening :

No

Mount :

Through Hole

Millicandela Rating :

2mcd

Wavelength :

623 nm

Length :

18.75mm

Common Pin :

Common Anode

Factory Lead Time :

12 Weeks

Width :

9.906mm

Dominant Wavelength :

623 nm

Display Type :

7-Segment

Voltage - Forward (Vf) (Typ) :

2V

Lead Free :

Lead Free

RoHS Status :

ROHS3 Compliant

Depth :

9.85mm

Color :

Red

Power Consumption :

75mW

Number of Characters :

1

Illumination Color :

Red

Number of Elements :

8

Power Dissipation-Max :

75mW

Digit/Alpha Size :

0.30 7.62mm

Number of Contacts :

14

Luminous Intensity :

2 mcd

Number of LEDs :

8

Power Dissipation :

75mW

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Viewing Area (height) :

7.65mm

Element Configuration :

Common Anode

Height :

18.7452mm

Operating Supply Voltage :

2V

Wavelength - Peak :

635nm

Published :

2000

Forward Current :

25mA

Peak Reverse Current :

100μA

Current - Test :

20mA

Max Operating Temperature :

85°C

Package / Case :

14-DIP (0.300, 7.62mm), 11 Leads

Min Operating Temperature :

-35°C

Number of Pins :

14

Packaging :

Tube
