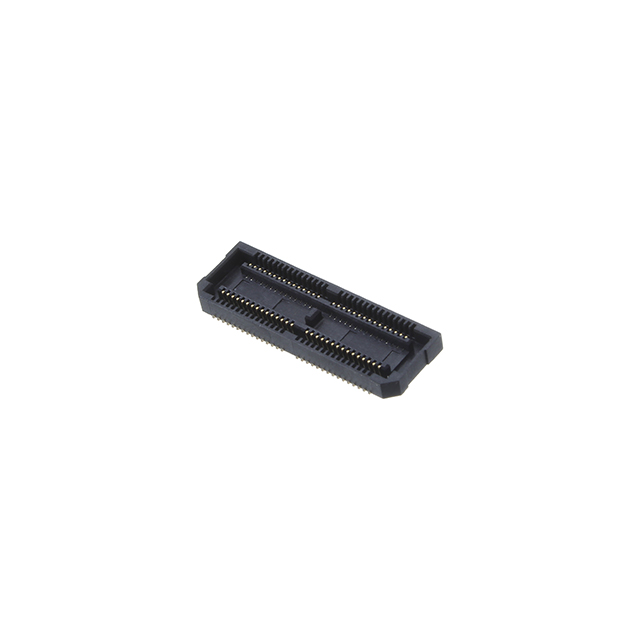

    LSH-030-01-G-D-A

    Share

    Or copy the link below:

    Mfr.Part #
    LSH-030-01-G-D-A
    Manufacturer
    Samtec, Inc.
    Package / Case
    Datasheet
    Download
    Description
    CONN RCPT 60POS SMD GOLD
    Stock
    114
    In Stock ：
    114

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Samtec, Inc.
    Product Category :
    Arrays, Edge Type, Mezzanine (Board to Board)
    Length :
    20.06mm
    Contact Material :
    Copper
    Filter Feature :
    No
    Contact Finish Thickness :
    10.0μin 0.25μm
    PCB Contact Pattern :
    RECTANGULAR
    Min Operating Temperature :
    -55°C
    Packaging :
    Tube
    Mounting Option 1 :
    LOCKING
    JESD-609 Code :
    e4
    Number Of PCB Rows :
    2
    Orientation :
    Straight
    Mounting Type :
    Surface Mount
    Factory Lead Time :
    3 Weeks
    Board Mounting Option :
    PEG
    Total Number of Contacts :
    60
    Polarization Key :
    POLARIZED HOUSING
    Gender :
    Receptacle
    DIN Conformance :
    No
    Option :
    GENERAL PURPOSE
    Max Operating Temperature :
    125°C
    Mixed Contacts :
    No
    Number of Rows :
    2
    Number of Conductors :
    ONE
    Contact Style :
    BELLOWED TYPE
    Contact Finish :
    Gold
    Housing Material :
    Polymer
    Series :
    LSH
    RoHS Status :
    ROHS3 Compliant
    Stack Height (Mating) :
    2.31mm
    Depth :
    6.5mm
    Contact Pattern :
    RECTANGULAR
    Body/Shell Style :
    Socket
    MIL Conformance :
    No
    Termination :
    Solder
    Published :
    2009
    Reliability :
    COMMERCIAL
    Pbfree Code :
    yes
    Connector Type :
    Receptacle, Center Strip Contacts
    Height Above Board :
    0.075 1.90mm
    Insulator Color :
    Black
    Mating Information :
    MULTIPLE MATING PARTS AVAILABLE
    Number of Positions :
    60
    Pitch :
    0.020 0.50mm
    Plating Thickness :
    10μin
    Feature :
    Board Guide
    IEC Conformance :
    No
    Datasheets
    LSH-030-01-G-D-A
    Introducing Arrays, Edge Type, Mezzanine (Board to Board) Samtec, Inc. LSH-030-01-G-D-A from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Surface Mount, LSH-030-01-G-D-A pinout, LSH-030-01-G-D-A datasheet PDF, LSH-030-01-G-D-A amp .Beyond Arrays, Edge Type, Mezzanine (Board to Board) Samtec, Inc. LSH-030-01-G-D-A ,we also offer 5054761010, 5035481222, AXT510124, Our vast inventory has you covered. Contact us now for immediate solutions.

    Samtec, Inc. LSH-030-01-G-D-A


    Receptacle, Center Strip Contacts Tube 2 Rows 0.020 0.50mm Surface Mount 60 Positions LSH Gold Solder Copper

    LSH-030-01-G-D-A Overview


    It comes in Receptacle, Center Strip Contacts packaging.In order to package the product, a Tube case is used.The device's mounting type is Surface Mount.It belongs to the LSH Series of products.When operating, it is possible to ensure that Board Guide is maintained.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -55°C.
