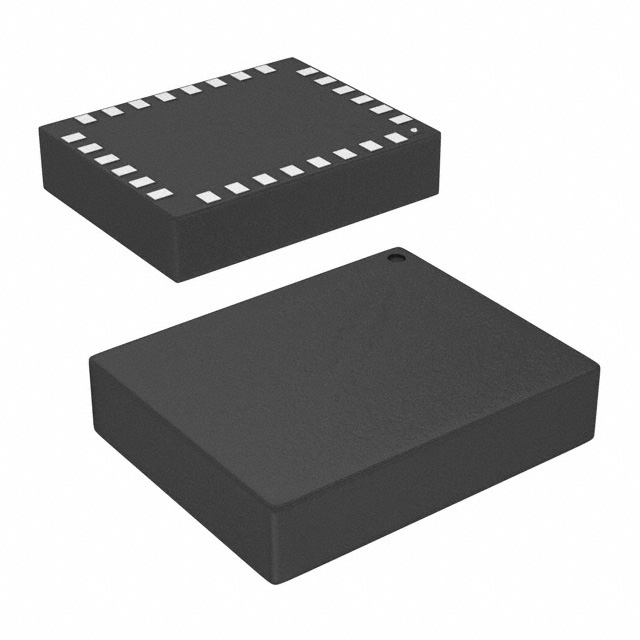

LPY410AL

Manufacturer :

STMicroelectronics

Product Category :

Motion Sensors - Gyroscopes

Width :

5mm

Max Supply Voltage (DC) :

3.6V

Type :

Analog

Operating Temperature :

-40°C~85°C TA

Nominal Supply Current :

6.8mA

Power Supplies :

3V

Min Supply Voltage (DC) :

2.7V

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

HTS Code :

8542.39.00.01

Axis :

X (Pitch), Y (Roll)

Operating Supply Voltage :

3.6V

Number of Functions :

1

Height :

1mm

Bandwidth :

560Hz

Base Part Number :

LPY410

Pin Count :

28

Packaging :

Tray

Output Type :

Analog Voltage

JESD-609 Code :

e4

Sensitivity (mV/°/s) :

10

Range °/s :

±100

Time@Peak Reflow Temperature-Max (s) :

30

Operating Supply Current :

6.8mA

Supply Voltage :

3V

Terminal Position :

BOTTOM

Radiation Hardening :

No

Peak Reflow Temperature (Cel) :

260

Number of Terminations :

28

Sensor Type :

2 Axis

Terminal Form :

BUTT

Surface Mount :

yes

Resolution :

3.5 B

Number of Pins :

28

RoHS Status :

ROHS3 Compliant

Package / Case :

28-TFLGA

Lead Free :

Lead Free

Length :

4mm

Voltage - Supply :

2.7V~3.6V

Terminal Finish :

Nickel/Gold (Ni/Au) - electrolytic

Pbfree Code :

yes
