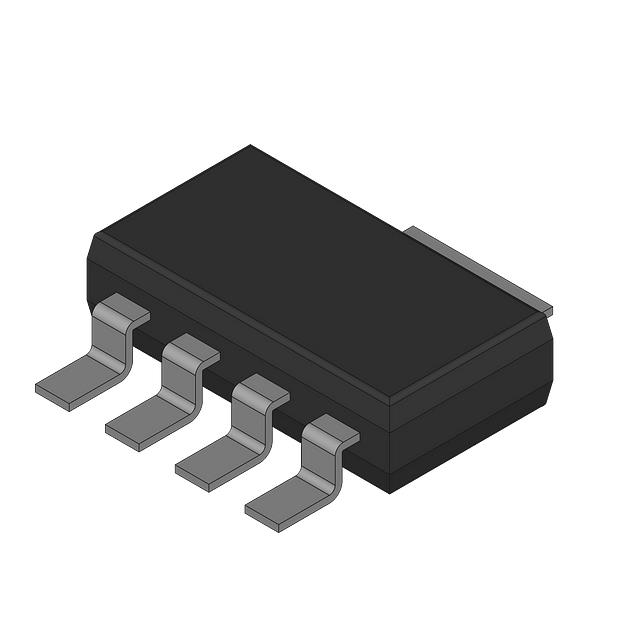

LP3962EMP-2.5

Manufacturer :

Texas Instruments

Product Category :

Voltage Regulators - Linear

Number of Functions :

1

Peak Reflow Temperature (Cel) :

260

Number of Outputs :

1

ECCN Code :

EAR99

Current - Quiescent (Iq) :

9mA

Accuracy :

1.5 %

Width :

3.56mm

Voltage - Input (Max) :

7V

Min Input Voltage :

2.5V

Operating Temperature :

-40°C~125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pin Count :

5

Nominal Output Voltage :

2.5V

Max Output Current :

1.5A

Quiescent Current :

4mA

Output Voltage :

2.5V

Output Type :

FIXED

REACH SVHC :

No SVHC

Lifecycle Status :

NRND (Last Updated: 1 week ago)

Length :

6.5mm

Dropout Voltage :

380mV

Terminal Position :

Dual

Mounting Type :

Surface Mount

Thickness :

1.6mm

Time@Peak Reflow Temperature-Max (s) :

40

Package / Case :

TO-261-5, TO-261AB

Packaging :

Tape and Reel (TR)

Height :

1.8mm

Lead Free :

Contains Lead

Number of Regulators :

1

Output Voltage 1 :

2.5V

Packing Method :

TR

Dropout Voltage1-Nom :

0.38V

Number of Terminations :

5

Terminal Form :

Gull wing

Min Current Limit :

2A

Voltage Tolerance-Max :

3%

Protection Features :

Over Current, Over Temperature, Short Circuit

Current Rating :

1.5A

Control Features :

Enable

JESD-609 Code :

e0

Mount :

Surface Mount

Voltage Dropout (Max) :

0.55V @ 1.5A

Radiation Hardening :

No

Current - Supply (Max) :

15mA

Output Configuration :

Positive

Terminal Finish :

Tin/Lead (Sn/Pb)

Base Part Number :

LP3962

RoHS Status :

Non-RoHS Compliant

Number of Pins :

5
