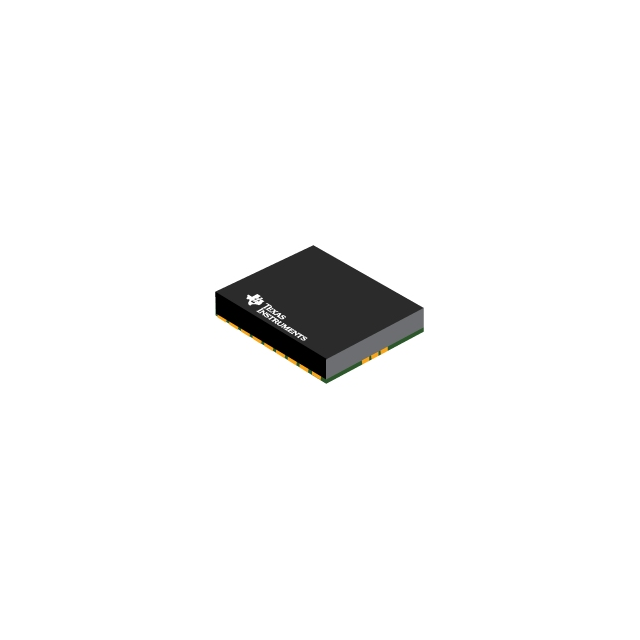

LMX2470SLEX

Manufacturer :

National Semiconductor

Product Category :

Clock Generators, PLLs, Frequency Synthesizers

Mounting Type :

Surface Mount

Number of Functions :

1

Output Frequency-Max :

2600MHz

ECCN Code :

EAR99

Height Seated (Max) :

0.6mm

Terminal Position :

QUAD

Divider/Multiplier :

Yes/Yes

Supply Current-Max (Isup) :

6mA

Frequency (Max) :

2.6GHz

RoHS Status :

Non-RoHS Compliant

Supply Voltage-Min (Vsup) :

2.25V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Surface Mount :

yes

Differential - Input:Output :

Yes/No

Width :

3.5mm

Power Supplies :

2.5V

Packaging :

Tape and Reel (TR)

Supply Voltage-Max (Vsup) :

2.75V

Number of Circuits :

1

Package / Case :

24-UFQFN

Operating Temperature :

-40°C~85°C

Supply Voltage :

2.5V

Terminal Pitch :

0.5mm

JESD-30 Code :

S-PQCC-N24

Peak Reflow Temperature (Cel) :

260

Length :

4.5mm

Qualification Status :

Not Qualified

Voltage - Supply :

2.25V~2.75V

Input :

CMOS

Ratio - Input:Output :

3:3

Pin Count :

24

Base Part Number :

LMX2470

Type :

PLL Frequency Synthesizer, Delta Sigma

Factory Lead Time :

6 Weeks

Pbfree Code :

yes

Terminal Form :

NO LEAD

Number of Terminations :

24

PLL :

Yes with Bypass

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
