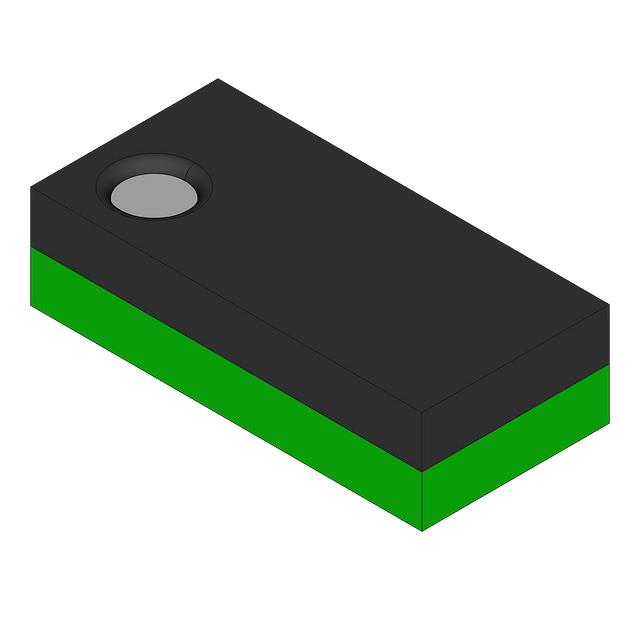

LMC8101TP/NOPB

Share

Or copy the link below:

Mfr.Part #
LMC8101TP/NOPB
Manufacturer
Texas Instruments
Package / Case
8-UFBGA
Datasheet
Download
Description
IC CMOS 1 CIRCUIT 8DSBGA
Stock
3,566
In Stock :
3,566

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Texas Instruments
Product Category :
Instrumentation, OP Amps, Buffer Amps
Operating Temperature :
-40°C~85°C
Pbfree Code :
yes
Dual Supply Voltage :
3V
Output Type :
Rail-to-Rail
Output Current :
20mA
Power Supply Rejection Ratio (PSRR) :
76dB
JESD-609 Code :
e1
Terminal Position :
BOTTOM
Factory Lead Time :
6 Weeks
Input Offset Voltage (Vos) :
700µV
Mount :
Surface Mount
Operating Supply Voltage :
5V
Length :
0m
Terminal Form :
Ball
Common Mode Rejection Ratio :
70 dB
Packaging :
Tape and Reel (TR)
RoHS Status :
ROHS3 Compliant
Unity Gain BW-Nom :
1000 kHz
Voltage Gain :
102.8dB
Number of Terminations :
8
Base Part Number :
LMC8101
Supply Voltage Limit-Max :
6V
Low-Offset :
No
Width :
0m
Current - Input Bias :
1pA
ECCN Code :
EAR99
Amplifier Type :
GENERAL PURPOSE
Gain Bandwidth Product :
1.3MHz
Bias Current-Max (IIB) @25C :
0.000064μA
Package / Case :
8-UFBGA
Average Bias Current-Max (IIB) :
0.000064μA
Radiation Hardening :
No
Wideband :
No
Architecture :
VOLTAGE-FEEDBACK
Mounting Type :
Surface Mount
Lead Free :
Lead Free
Supply Voltage :
5V
Output Current per Channel :
90mA
Micropower :
No
Terminal Finish :
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Pitch :
0.5mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packing Method :
TR
Voltage - Supply, Single/Dual (±) :
2.7V~10V ±1.35V~5V
Neg Supply Voltage-Nom (Vsup) :
-5V
Input Offset Current-Max (IIO) :
0.000032μA
Number of Elements :
1
Nominal Supply Current :
700µA
Pin Count :
8
Operating Supply Current :
1.1mA
Height :
575μm
Peak Reflow Temperature (Cel) :
260
Thickness :
370μm
Number of Pins :
8
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Slew Rate :
1.2V/µs
Frequency Compensation :
yes
Number of Functions :
1
Low-Bias :
yes
Programmable Power :
No
Datasheets
LMC8101TP/NOPB
Introducing Instrumentation, OP Amps, Buffer Amps Texas Instruments LMC8101TP/NOPB from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~85°C, Number of Terminations:8, Base Part Number:LMC8101, Package / Case:8-UFBGA, Mounting Type:Surface Mount, Number of Pins:8, LMC8101TP/NOPB pinout, LMC8101TP/NOPB datasheet PDF, LMC8101TP/NOPB amp .Beyond Instrumentation, OP Amps, Buffer Amps Texas Instruments LMC8101TP/NOPB ,we also offer OP07CDR, TS321CX5 RFG, NE5532ADR, Our vast inventory has you covered. Contact us now for immediate solutions.

Texas Instruments LMC8101TP/NOPB


Instrumentation, OP Amps, Buffer Amps Texas Instruments LMC8101TP/NOPB Overview

This Texas Instruments LMC8101TP/NOPB is an integrated circuit (IC) designed for instrumentation, operational amplifier (OP Amp), and buffer amplifier applications. It comes in a compact 8-DSBGA package, making it suitable for various electronic designs requiring precise signal amplification and buffering.

With its CMOS technology, this IC offers high performance and low power consumption, ensuring efficient operation in both battery-powered and mains-powered devices. Its small footprint and versatile functionality make it an ideal choice for applications demanding space-saving and reliable amplification solutions.

LMC8101TP/NOPB Features

  • CMOS technology for high performance and low power consumption
  • Compact 8-DSBGA package for space-saving designs
  • Designed for instrumentation, OP Amp, and buffer amplifier applications
  • Suitable for both battery-powered and mains-powered devices
  • Reliable and efficient signal amplification and buffering

LMC8101TP/NOPB Applications

  • Medical Instruments: The LMC8101TP/NOPB can be used in medical instruments such as patient monitoring systems and medical imaging devices to amplify and buffer sensor signals accurately and reliably, ensuring precise measurements and diagnostics.
  • Industrial Automation: In industrial automation systems, this IC can serve in control and monitoring equipment, providing precise signal conditioning for sensors and actuators, enhancing system performance and reliability.
  • Audio Equipment: The LMC8101TP/NOPB is suitable for audio equipment such as audio mixers and amplifiers, where it can be used to amplify and buffer audio signals with high fidelity and low distortion, delivering exceptional sound quality.
  • Test and Measurement Instruments: In test and measurement instruments like oscilloscopes and signal generators, this IC enables accurate signal amplification and buffering, ensuring reliable and precise measurements in various electronic testing applications.
