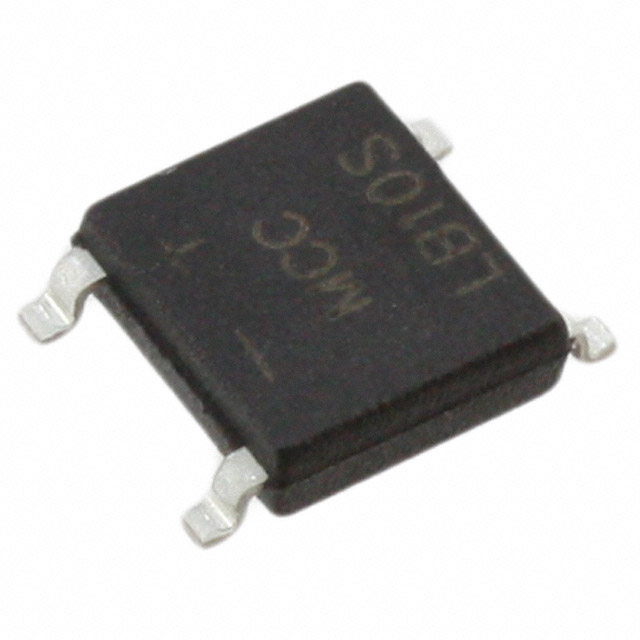

LMB10S-TP

Manufacturer :

Micro Commercial Components (MCC)

Product Category :

Diodes - Bridge Rectifiers

Pin Count :

4

Published :

2005

Operating Temperature :

-55°C~150°C TJ

Factory Lead Time :

12 Weeks

HTS Code :

8541.10.00.70

Number of Terminations :

4

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Pbfree Code :

yes

Package / Case :

4-SMD, Gull Wing

Voltage - Forward (Vf) (Max) @ If :

950mV @ 400mA

Packaging :

Cut Tape (CT)

Diode Element Material :

SILICON

Diode Type :

Single Phase

Surface Mount :

yes

Configuration :

BRIDGE, 4 ELEMENTS

Voltage - Peak Reverse (Max) :

1kV

Mounting Type :

Surface Mount

Output Current-Max :

0.8A

Number of Phases :

1

JESD-30 Code :

R-PDSO-G4

Number of Elements :

4

Terminal Position :

Dual

Breakdown Voltage-Min :

1000V

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Non-rep Pk Forward Current-Max :

30A

Base Part Number :

LMB10

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reach Compliance Code :

not_compliant

Current - Average Rectified (Io) :

1A

Current - Reverse Leakage @ Vr :

5µA @ 1000V

Qualification Status :

Not Qualified

JESD-609 Code :

e3

Terminal Finish :

Matte Tin (Sn)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
