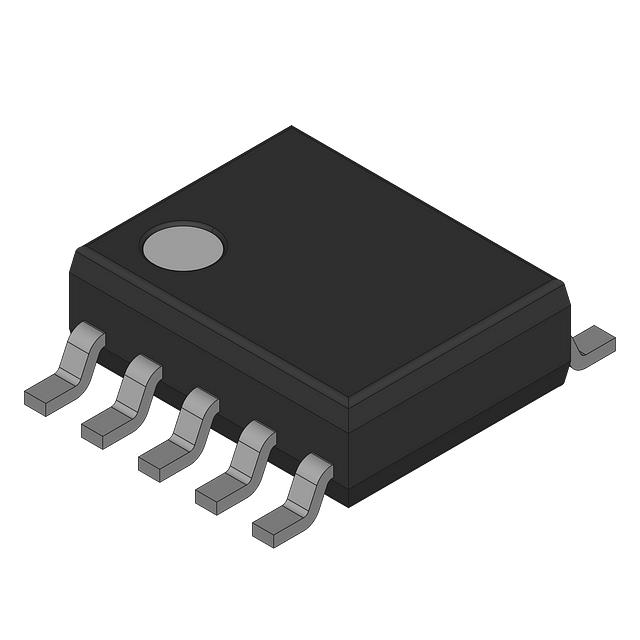

LM5060QDGSRQ1

Manufacturer :

Texas Instruments

Product Category :

Gate Drivers

Operating Temperature :

-40°C~125°C TJ

Current - Peak Output (Source, Sink) :

24μA 2.2mA

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Packaging :

Tape and Reel (TR)

Driven Configuration :

High-Side

Package / Case :

10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Width :

3mm

Terminal Pitch :

0.5mm

Number of Functions :

1

Supply Voltage-Min (Vsup) :

5.5V

Voltage - Supply :

5.5V~65V

Surface Mount :

yes

Terminal Finish :

Matte Tin (Sn)

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Channel Type :

Single

Number of Pins :

10

Number of Terminations :

10

Number of Drivers :

1

Analog IC - Other Type :

POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold :

yes

Terminal Position :

Dual

Thickness :

1.02mm

Length :

3mm

Factory Lead Time :

8 Weeks

Mounting Type :

Surface Mount

Base Part Number :

LM5060

Height :

1.07mm

Input Type :

Non-Inverting

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Automotive, AEC-Q100

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Supply Voltage-Max (Vsup) :

65V

Peak Reflow Temperature (Cel) :

260

Supply Voltage :

14V

Gate Type :

N-Channel MOSFET

ECCN Code :

EAR99

Number of Channels :

1

JESD-609 Code :

e3

Logic Voltage - VIL, VIH :

0.8V 2V

Terminal Form :

Gull wing
