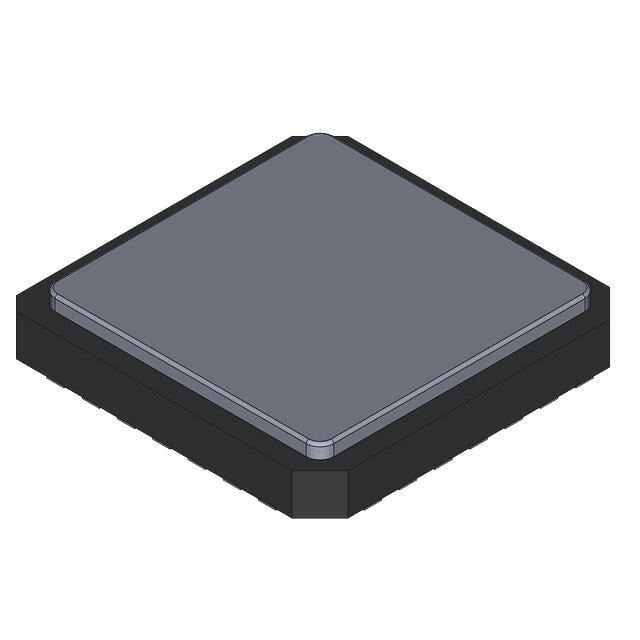

LM4960SQ/NOPB
Or copy the link below:
- Mfr.Part #
- LM4960SQ/NOPB
- Manufacturer
- National Semiconductor
- Package / Case
- 28-WFQFN Exposed Pad
- Datasheet
- Download
- Description
- AUDIO AMPLIFIER, 1 CHANNEL(S), 1
- Stock
- 8,253
- In Stock ：
- 8,253
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- National Semiconductor
- Product Category :
- Audio Amplifiers
- Height Seated (Max) :
- 0.8mm
- RoHS Status :
- ROHS3 Compliant
- Type :
- Class AB
- Supply Voltage-Max (Vsup) :
- 7V
- Terminal Pitch :
- 0.5mm
- Base Part Number :
- LM4960
- Packaging :
- Tape and Reel (TR)
- Power Supply Rejection Ratio (PSRR) :
- 60dB
- Width :
- 5mm
- Number of Channels :
- 1
- Mount :
- Surface Mount
- Number of Pins :
- 28
- Operating Temperature :
- -40°C~85°C TA
- Supply Voltage-Min (Vsup) :
- 3V
- Feature :
- Depop, Short-Circuit and Thermal Protection, Shutdown
- Supply Type :
- Single
- Radiation Hardening :
- No
- Package / Case :
- 28-WFQFN Exposed Pad
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Output Type :
- 1-Channel (Mono)
- Length :
- 5mm
- Harmonic Distortion :
- 1%
- Terminal Position :
- QUAD
- Number of Terminations :
- 28
- JESD-609 Code :
- e3
- Nominal Supply Current :
- 45mA
- Terminal Finish :
- Matte Tin (Sn)
- Mounting Type :
- Surface Mount
- Peak Reflow Temperature (Cel) :
- 260
- Voltage - Supply :
- 3V~7V
- Series :
- Boomer®
- Pbfree Code :
- No
- Lead Free :
- Contains Lead
- Power Supplies :
- 3/5V
- Number of Functions :
- 1
- Datasheets
- LM4960SQ/NOPB
[Audio Amplifiers National Semiconductor LM4960SQ/NOPB] Overview
Experience premium audio amplification with the LM4960SQ/NOPB from National Semiconductor. This high-quality 1-channel audio amplifier is meticulously crafted to deliver unparalleled sound performance in various applications. Designed with precision and expertise, this amplifier ensures crystal-clear audio reproduction, making it an ideal choice for demanding audio environments.
Whether you're enhancing the audio experience in consumer electronics, automotive systems, or industrial applications, the LM4960SQ/NOPB stands out as a reliable and versatile solution. Its compact design and efficient power management make it suitable for integration into a wide range of devices, providing exceptional sound quality without compromising on space or energy efficiency.
Equip your products with the exceptional audio capabilities of the LM4960SQ/NOPB, and elevate your users' listening experience to new heights.
[LM4960SQ/NOPB] Features
- Premium audio amplification
- 1-channel configuration
- Crystal-clear sound reproduction
- Compact and efficient design
- Wide application versatility
- Reliable performance in diverse environments
[LM4960SQ/NOPB] Applications
- Portable Audio Devices: Incorporate the LM4960SQ/NOPB into portable speakers, headphones, and audio accessories to deliver immersive sound experiences on the go. Its compact size and efficient power management make it perfect for battery-powered devices, ensuring long-lasting audio enjoyment.
- Automotive Audio Systems: Enhance the audio quality in car audio systems with the LM4960SQ/NOPB. Its premium amplification capabilities ensure crisp and clear sound reproduction, elevating the in-car entertainment experience for drivers and passengers alike.
- Industrial Equipment: Integrate the LM4960SQ/NOPB into industrial machinery, public address systems, and equipment requiring robust audio amplification. Its reliable performance and wide operating temperature range make it suitable for demanding industrial environments, ensuring consistent sound quality in various applications.
