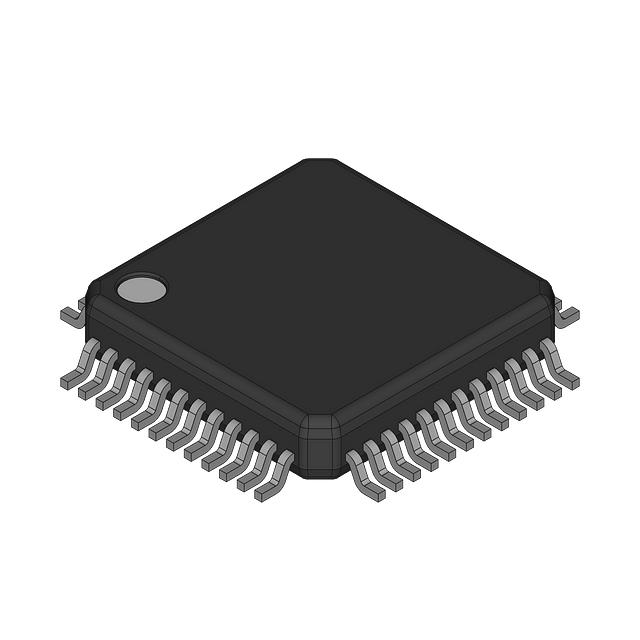

LM3S808-IQN50

Manufacturer :

Luminary Micro

Product Category :

Microcontrollers

Integrated Cache :

yes

Mounting Type :

Surface Mount

Height :

1.6mm

DAC Channels :

No

Has ADC :

yes

Length :

7mm

Packaging :

Tape and Reel (TR)

Radiation Hardening :

No

Bit Size :

32

Format :

FIXED-POINT

Number of Pins :

48

Width :

7mm

Interface :

I2C, SPI, UART, USART

Pbfree Code :

yes

Number of UART Channels :

2

Number of Timers/Counters :

5

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Supply Voltage :

3.3V

Peripherals :

Brown-out Detect/Reset, POR, PWM, WDT

Core Architecture :

ARM

Peak Reflow Temperature (Cel) :

260

RoHS Status :

ROHS3 Compliant

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Thickness :

1.4mm

JESD-609 Code :

e3

Frequency :

50MHz

Data Bus Width :

32b

Supply Voltage-Max (Vsup) :

3.6V

Mount :

Surface Mount

Data Converter :

A/D 8x10b

Number of Serial I/Os :

4

Terminal Form :

Gull wing

RAM Size :

8K x 8

Terminal Finish :

Matte Tin (Sn)

Connectivity :

I2C, IrDA, SCI, SPI, UART/USART

Series :

Stellaris® ARM® Cortex®-M3S 800

Oscillator Type :

Internal

Number of Terminations :

48

Program Memory Size :

64KB 64K x 8

Terminal Position :

QUAD

Pin Count :

48

Watchdog Timer :

yes

PWM Channels :

yes

Memory Size :

64KB

Program Memory Type :

Flash

Low Power Mode :

yes

Core Processor :

ARM® Cortex®-M3

Boundary Scan :

yes

Operating Temperature :

-40°C~85°C TA

Lead Free :

Lead Free

DMA Channels :

No

Number of Bits :

10

Core Size :

32-Bit

Number of A/D Converters :

1

CPU Family :

CORTEX-M3

Number of I/O :

28

Operating Supply Voltage :

3.3V

Base Part Number :

LM3S808

Voltage - Supply (Vcc/Vdd) :

3V~3.6V

Package / Case :

48-LQFP

Lifecycle Status :

NRND (Last Updated: 1 week ago)
