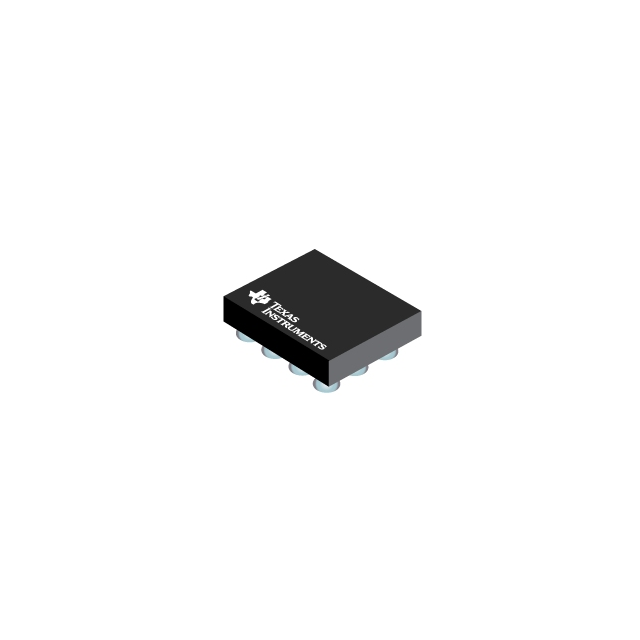

LM3203TL/NOPB

Manufacturer :

National Semiconductor

Product Category :

Voltage Regulators - DC DC Switching Regulators

Synchronous Rectifier :

yes

Radiation Hardening :

No

Function :

Step-Down

Number of Outputs :

1

Terminal Pitch :

0.5mm

Frequency - Switching :

2MHz

ECCN Code :

EAR99

Package / Case :

10-WFBGA

Operating Supply Current :

500mA

Mount :

Surface Mount

Number of Pins :

10

Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Control Mode :

CURRENT-MODE

Peak Reflow Temperature (Cel) :

260

Output Type :

Adjustable

Input Voltage-Nom :

3.6V

Max Duty Cycle :

96 %

Min Output Voltage :

800mV

Isolation :

Non-Isolated

Operating Supply Voltage :

5.5V

Output Voltage :

3.6V

Max Output Voltage :

3.6V

Analog IC - Other Type :

SWITCHING REGULATOR

Terminal Position :

BOTTOM

Number of Terminations :

10

Height :

675μm

Output Configuration :

Positive

Topology :

Buck

Terminal Form :

Ball

Factory Lead Time :

6 Weeks

Pbfree Code :

yes

JESD-609 Code :

e1

Lead Free :

Lead Free

Voltage - Input (Min) :

2.7V

Max Output Current :

500mA

Length :

0m

Thickness :

360μm

RoHS Status :

ROHS3 Compliant

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Output (Min/Fixed) :

0.8V

Rise Time :

50µs

Voltage - Output (Max) :

3.6V

Packaging :

Tape and Reel (TR)

Operating Temperature :

-30°C~85°C TA

Width :

0m

Control Technique :

PULSE WIDTH MODULATION

Base Part Number :

LM3203

Mounting Type :

Surface Mount
