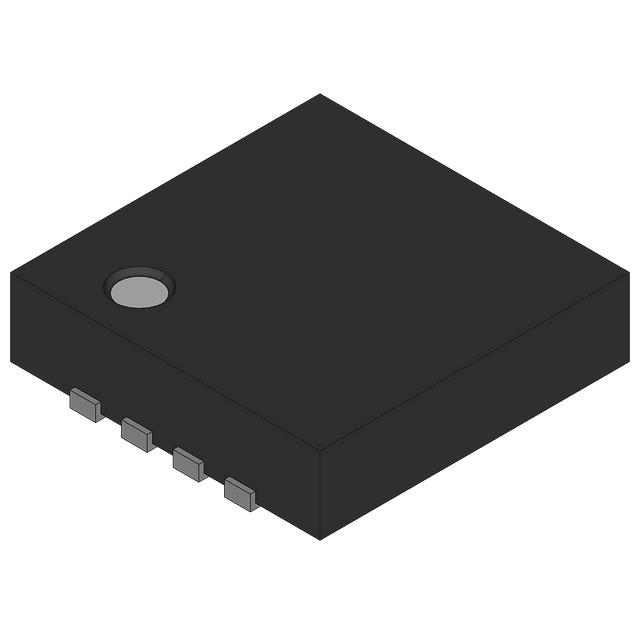

LM2941LD

Manufacturer :

National Semiconductor

Product Category :

Voltage Regulators - Linear

RoHS Status :

Non-RoHS Compliant

Number of Pins :

8

Thickness :

800μm

Min Input Voltage :

-15V

Current - Supply (Max) :

15mA

Mount :

Surface Mount

Radiation Hardening :

No

Voltage Dropout (Max) :

1V @ 1A

Height :

800μm

Operating Supply Voltage :

26V

Voltage - Input (Max) :

26V

Current - Quiescent (Iq) :

10mA

Peak Reflow Temperature (Cel) :

235

Dropout Voltage1-Nom :

0.5V

Lifecycle Status :

NRND (Last Updated: 1 day ago)

Min Output Voltage :

5V

Control Features :

Enable

Quiescent Current :

15mA

Terminal Position :

Dual

Packing Method :

TR

Reference Voltage :

1.313V

Number of Outputs :

1

Protection Features :

Over Temperature, Reverse Polarity, Short Circuit

Dropout Voltage :

800mV

Lead Free :

Contains Lead

Max Output Voltage :

20V

Length :

4mm

Terminal Finish :

Tin/Lead (Sn/Pb)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Package / Case :

8-WDFN Exposed Pad

Output Type :

Adjustable

Operating Temperature :

-40°C~125°C

Width :

4mm

REACH SVHC :

No SVHC

Base Part Number :

LM2941

JESD-609 Code :

e0

Output Voltage :

20V

Number of Terminations :

8

Output Configuration :

Positive

Number of Regulators :

1

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Number of Functions :

1

Max Output Current :

1A

Pin Count :

8
