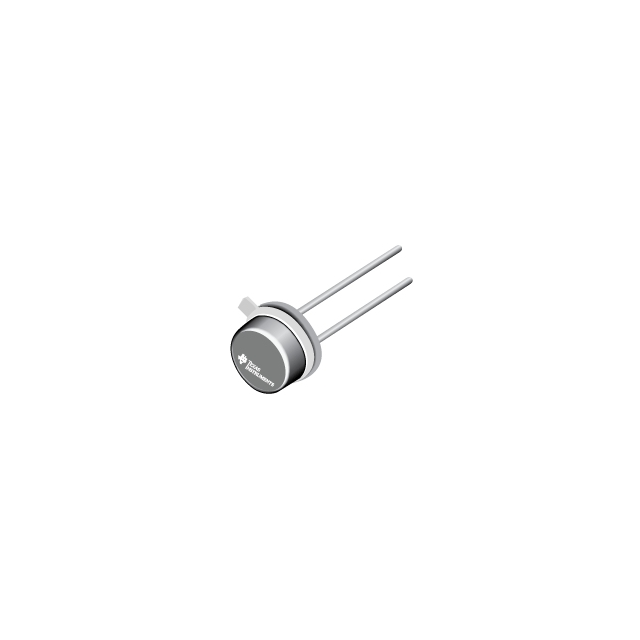

LM185BYH1.2-SMD

Manufacturer :

Texas Instruments

Product Category :

Voltage Reference

Length :

4.699mm

Package / Case :

TO-46

Voltage Tolerance-Max :

0.98%

Reference Type :

Shunt

Output Voltage :

1.223V

Max Output Voltage :

1.235V

Number of Functions :

1

Screening Level :

38535Q/M;38534H;883B

Trim/Adjustable Output :

yes

Number of Pins :

2

Pin Count :

2

Max Output Current :

20mA

Total Dose :

100 krad(Si) V

Temperature Grade :

Military

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

125°C

ECCN Code :

EAR99

Voltage - Output :

1.235V

Radiation Hardening :

No

RoHS Status :

RoHS Compliant

Number of Terminations :

2

Analog IC - Other Type :

TWO TERMINAL VOLTAGE REFERENCE

Mount :

Through Hole

Temperature Coefficient :

50 ppm/°C

Terminal Position :

BOTTOM

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Height :

2.667mm

Terminal Form :

Wire

Width :

4.699mm

Number of Outputs :

1

Min Operating Temperature :

-55°C

Thickness :

2.362mm

Lead Free :

Contains Lead
