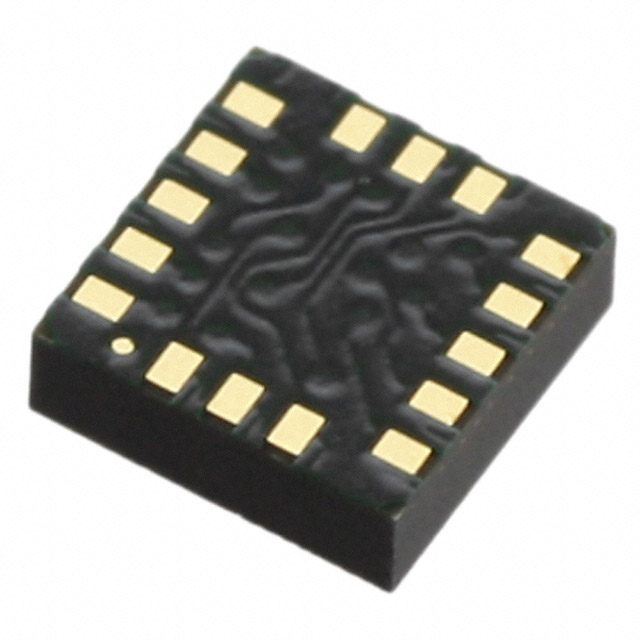

LIS331DLFTR

Manufacturer :

STMicroelectronics

Product Category :

Motion Sensors - Accelerometers

Mount :

Surface Mount

Pin Count :

16

Feature :

Adjustable Bandwidth, Selectable Scale, Sleep Mode

Voltage - Supply :

2.16V~3.6V

JESD-609 Code :

e4

Axis :

X, Y, Z

Qualification Status :

Not Qualified

Resolution :

0.75 B

Interface :

I2C, SPI

Power Supplies :

2.5V

Package / Case :

16-VFLGA

Output Type :

I2C, SPI

Supply Voltage-Max (Vsup) :

3.6V

Peak Reflow Temperature (Cel) :

260

Terminal Finish :

Nickel/Gold (Ni/Au)

Bandwidth :

25Hz ~ 200Hz

HTS Code :

8542.39.00.01

Terminal Form :

BUTT

Supply Voltage :

2.5V

Nominal Supply Current :

250μA

Terminal Position :

BOTTOM

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Height Seated (Max) :

1mm

Length :

3mm

Operating Temperature :

-40°C~85°C TA

Packaging :

Tape and Reel (TR)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Sensitivity (LSB/g) :

16 (±2g) ~ 4 (±8g)

Number of Functions :

1

Terminal Pitch :

0.5mm

Type :

Digital

Base Part Number :

LIS331

Reach Compliance Code :

Unknown

RoHS Status :

ROHS3 Compliant

Mounting Type :

Surface Mount

Acceleration Range :

±2g, 4g, 8g

Number of Pins :

16

Number of Terminations :

16
