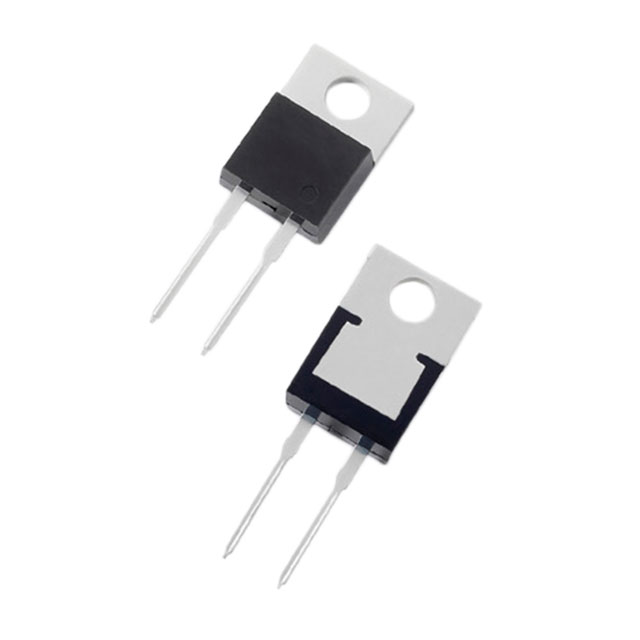

LFUSCD10065A

Manufacturer :

Littelfuse

Product Category :

Diodes - Rectifiers - Single

Application :

EFFICIENCY

Reverse Current-Max :

250μA

Packaging :

Tube

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Case Connection :

CATHODE

Non-rep Pk Forward Current-Max :

75A

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Through Hole

Voltage - Forward (Vf) (Max) @ If :

1.7V @ 10A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Phases :

1

ECCN Code :

EAR99

Configuration :

Single

Operating Temperature - Junction :

175°C Max

Additional Feature :

PD-CASE

Max Reverse Voltage (DC) :

650V

Published :

2016

Speed :

No Recovery Time > 500mA (Io)

Operating Temperature (Max) :

175°C

Terminal Position :

Single

Diode Type :

Silicon Carbide Schottky

Average Rectified Current :

10A

JEDEC-95 Code :

TO-220AC

Capacitance @ Vr, F :

290pF @ 1V 1MHz

Lead Free :

Lead Free

Reverse Recovery Time :

0ns

Current - Reverse Leakage @ Vr :

250μA @ 650V

Power Dissipation-Max :

125W

Number of Elements :

1

JESD-30 Code :

R-PSFM-T2

Current - Average Rectified (Io) :

10A DC

Mount :

Through Hole

Factory Lead Time :

17 Weeks

Number of Terminations :

2

Reach Compliance Code :

Unknown

HTS Code :

8541.10.00.80

Package / Case :

TO-220-2
