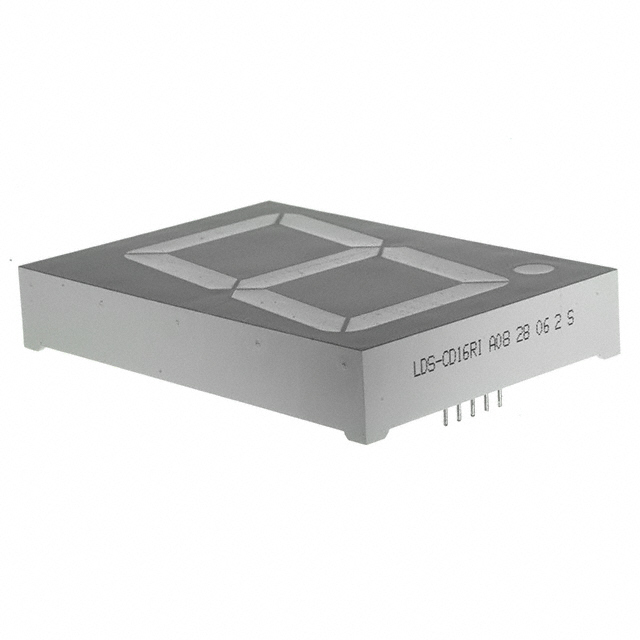

LDS-CD16RI
Or copy the link below:
- Mfr.Part #
- LDS-CD16RI
- Manufacturer
- Lumex, Inc.
- Package / Case
- 10-DIP (2.367, 60.10mm)
- Datasheet
- Download
- Description
- DISPLAY 7SEG 2.24" SGL RED 10DIP
- Stock
- 25,738
- In Stock ：
- 25,738
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Lumex, Inc.
- Product Category :
- Size / Dimension :
- 2.756 Hx1.890W x 0.472 D 70.00mmx48.00mmx12.00mm
- Max Operating Temperature :
- 85°C
- Package / Case :
- 10-DIP (2.367, 60.10mm)
- Pbfree Code :
- yes
- Number of Characters :
- 1
- Character Width :
- 58.42mm
- Digit/Alpha Size :
- 2.24 56.90mm
- Lead Free :
- Lead Free
- Color :
- Red
- Optoelectronic Device Type :
- SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
- Element Configuration :
- Common Cathode
- Min Operating Temperature :
- -40°C
- Packaging :
- Bulk
- Voltage - Forward (Vf) (Typ) :
- 6.8V
- Display Type :
- 7-Segment
- Factory Lead Time :
- 12 Weeks
- Forward Voltage-Max :
- 6V
- Common Pin :
- Common Cathode
- Power Dissipation-Max :
- 100mW
- RoHS Status :
- ROHS3 Compliant
- Wavelength - Peak :
- 660nm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current - Test :
- 10mA
- Forward Current :
- 30mA
- Published :
- 2001
- Luminous Intensity :
- 22.5 mcd
- Number of Functions :
- 1
- Height :
- 12mm
- Operating Supply Voltage :
- 8.8V
- Datasheets
- LDS-CD16RI
LDS-CD16RI datasheet pdf and Display Modules - LED Character and Numeric product details from Lumex Opto/Components Inc. stock available at
