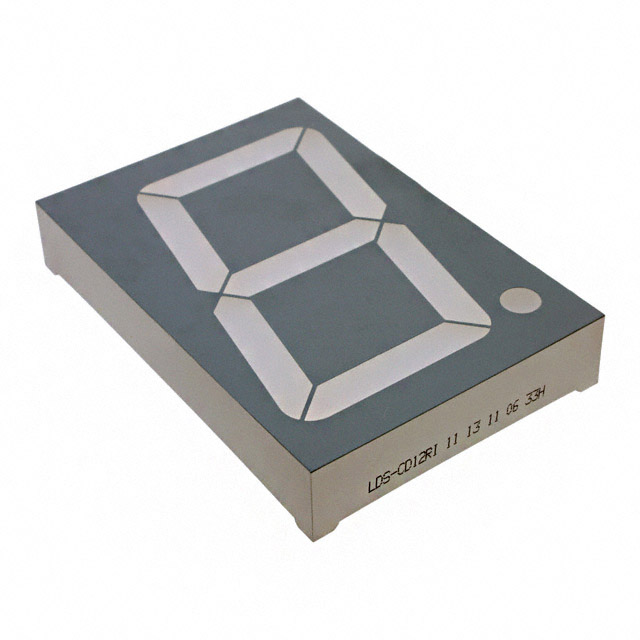

LDS-CD12RI
Or copy the link below:
- Mfr.Part #
- LDS-CD12RI
- Manufacturer
- Lumex, Inc.
- Package / Case
- 10-DIP (2.367, 60.10mm)
- Datasheet
- Download
- Description
- DISPLAY 7SEG 2.24" SGL GRN 10DIP
- Stock
- 27,107
- In Stock ：
- 27,107
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Lumex, Inc.
- Product Category :
- Common Pin :
- Common Cathode
- Forward Voltage-Max :
- 7.8V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Optoelectronic Device Type :
- SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
- Package / Case :
- 10-DIP (2.367, 60.10mm)
- Power Dissipation-Max :
- 105mW
- Published :
- 2001
- Factory Lead Time :
- 12 Weeks
- Min Operating Temperature :
- -40°C
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Forward Current :
- 30mA
- Size / Dimension :
- 2.744 Hx1.882W x 0.472 D 69.70mmx47.80mmx12.00mm
- Height :
- 69.6976mm
- Number of Characters :
- 1
- Digit/Alpha Size :
- 2.24 56.90mm
- Luminous Intensity :
- 6.3 mcd
- Character Width :
- 58.42mm
- Current - Test :
- 10mA
- Max Operating Temperature :
- 85°C
- Color :
- Green
- Operating Supply Voltage :
- 8.4V
- Element Configuration :
- Common Cathode
- Number of Functions :
- 1
- Display Type :
- 7-Segment
- Wavelength - Peak :
- 565nm
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- LDS-CD12RI
LDS-CD12RI datasheet pdf and Display Modules - LED Character and Numeric product details from Lumex Opto/Components Inc. stock available at
