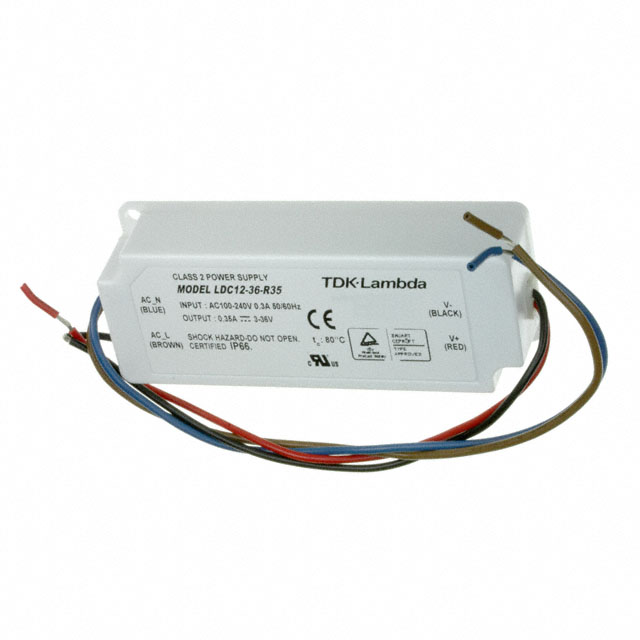

LDC12-36-R35

Manufacturer :

TDK-Lambda, Inc.

Product Category :

Termination :

Wire Leads

Ratings :

IP66

Power Rating :

12W

Current - Output 1 :

350mA

Published :

2009

Depth :

34.5mm

Output Power :

12.6W

Power (Watts) :

13W

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Chassis Mount

Feature :

OCP, OVP

Efficiency :

82%

Min Operating Temperature :

-10°C

Weight :

0.186lb 84.37g

Height :

21.082mm

Voltage - Output :

3V~36V

Voltage - Output 1 :

36V

Termination Style :

Wire Leads

RoHS Status :

RoHS Compliant

Operating Temperature :

-10°C~60°C

Topology :

AC DC Converter

Max Output Current :

350mA

Series :

LD12 (12W)

Factory Lead Time :

25 Weeks

Voltage - Input (Min) :

90VAC

Voltage - Input (Max) :

264VAC

Max Operating Temperature :

60°C

Width :

34.544mm

Voltage - Isolation :

3kV

Number of Outputs :

1

Approval Agency :

CE, IEC, UL

Length :

87.63mm

Type :

Constant Current

Current - Output (Max) :

350mA

Max Power Dissipation :

13W

Mounting Type :

Chassis Mount

Size / Dimension :

3.45Lx1.36W x 0.83 H 90.0mmx34.5mmx21.0mm

Output Current :

350mA
