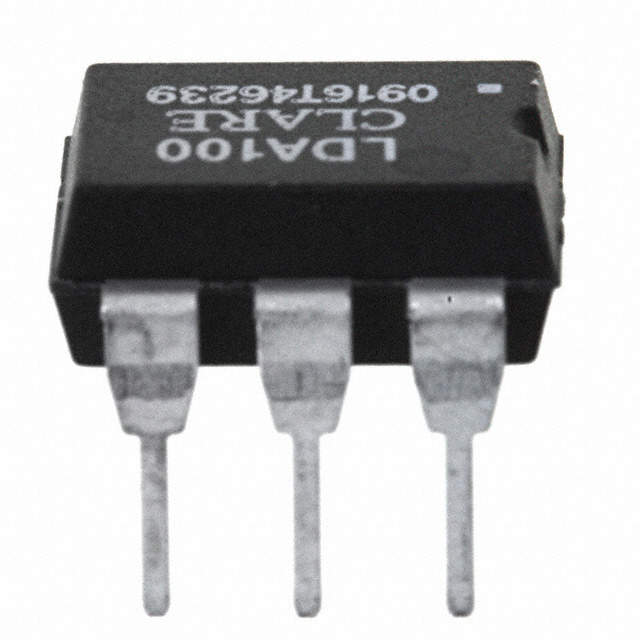

LDA100

Manufacturer :

Littelfuse

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Package :

Tube

Current Transfer Ratio :

300 %

Collector Emitter Saturation Voltage :

500mV

Current - DC Forward (If) (Max) :

1mA

Additional Feature :

UL RECOGNIZED

Minimum Operating Temperature :

- 40 C

Vf - Forward Voltage :

1.4 V

Current - Output / Channel :

--

Forward Voltage-Max :

1.4 V

Rise / Fall Time (Typ) :

--

Subcategory :

Optocouplers

Optoelectronic Device Type :

AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

Product Type :

Transistor Output Optocouplers

Reach Compliance Code :

Compliant

Operating Temperature :

-40°C~85°C

Product Category :

Transistor Output Optocouplers

Coll-Emtr Bkdn Voltage-Min :

30 V

Series :

--

Dark Current-Max :

500 nA

Number of Pins :

6

Number of Circuits :

1

Min Operating Temperature :

-40°C

Isolation Voltage :

3750(V)

Voltage - Forward (Vf) (Typ) :

1.2V

Mounting Feature :

THROUGH HOLE MOUNT

Maximum Forward Current :

50(mA)

Operating Temperature Classification :

Industrial

Mounting Type :

Through Hole

Forward Current :

50mA

Manufacturer :

IXYS

Isolation Voltage-Max :

3750 V

Supplier Device Package :

6-DIP

Mount :

Through Hole

Lead Free :

Lead Free

Terminal Finish :

Matte Tin (Sn)

Forward Current-Max :

0.001 A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Collector Emitter Voltage (VCEO) :

500mV

Input Type :

AC, DC

Number of Channels :

1

Current Transfer Ratio (Min) :

33% @ 1mA

Pin Count :

6

Package / Case :

6-DIP (0.300, 7.62mm)

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

6 Weeks

Tradename :

Clare

Configuration :

Single

Voltage - Output (Max) :

30V

Turn On / Turn Off Time (Typ) :

7μs, 20μs

Output Type :

Transistor with Base

Mounting :

Through Hole

HTS Code :

8541.40.80.00

Collector-Emitter Voltage :

30(V)

Max Output Voltage :

30V

Operating Temp Range :

-40C to 85C

Voltage - Isolation :

3750Vrms

Packaging :

Tube

Brand :

IXYS Integrated Circuits

Number of Elements :

1

Current Transfer Ratio (Max) :

--

Package Type :

PDIP

Rad Hardened :

No

RoHS :

Details

Mounting Style :

Through Hole

Surface Mount :

No

JESD-609 Code :

e3

Standard :

CSA/EN/IEC/TUV/UL

Rise Time :

-

Product Status :

Active

Published :

2011

Power Dissipation :

150mW

Power Dissipation-Max :

0.19 W

Max Operating Temperature :

85°C

Output Device :

Transistor with Base

Maximum Operating Temperature :

+ 85 C

Pbfree Code :

yes

Output Voltage :

20V

Forward Voltage :

1.2V

Vce Saturation (Max) :

500mV
