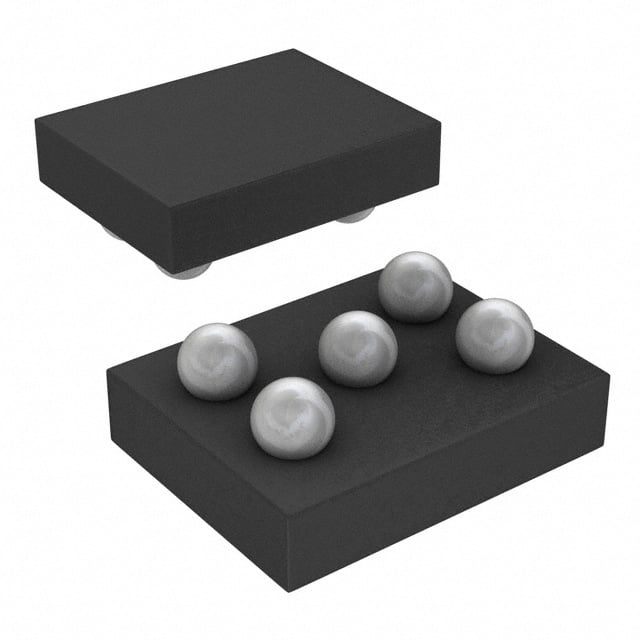

LD3985J33R

Manufacturer :

STMicroelectronics

Product Category :

Voltage Regulators - Linear

Voltage Tolerance-Max :

3%

Number of Regulators :

1

Dropout Voltage :

60mV

Number of Outputs :

1

Lead Free :

Contains Lead

Operating Temperature :

-40°C~125°C

Protection Features :

Over Current, Over Temperature

Current - Supply (Max) :

250μA

Max Output Current :

550mA

Output Voltage 1 :

3.3V

Base Part Number :

LD3985

RoHS Status :

ROHS3 Compliant

Min Current Limit :

300mA

Min Input Voltage :

2.5V

Current - Output :

150mA

Number of Terminations :

5

ECCN Code :

EAR99

Quiescent Current :

150μA

Dropout Voltage1-Nom :

0.06V

Package / Case :

5-WFBGA, FCBGA

Voltage - Input (Max) :

6V

Output Voltage Accuracy :

2 %

PSRR :

60dB ~ 50dB (1kHz ~ 10kHz)

Mount :

Surface Mount

Terminal Position :

BOTTOM

Input Voltage Absolute-Max :

6V

Packing Method :

Tape and Reel

Radiation Hardening :

No

Pin Count :

5

Accuracy :

2 %

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Voltage :

3.3V

Number of Pins :

5

Output Configuration :

Positive

Voltage Dropout (Max) :

0.1V @ 150mA

Output Type :

FIXED

Packaging :

Tape and Reel (TR)

Control Features :

Enable

Mounting Type :

Surface Mount

Terminal Form :

Ball

Number of Functions :

1

Input Bias Current :

85μA
