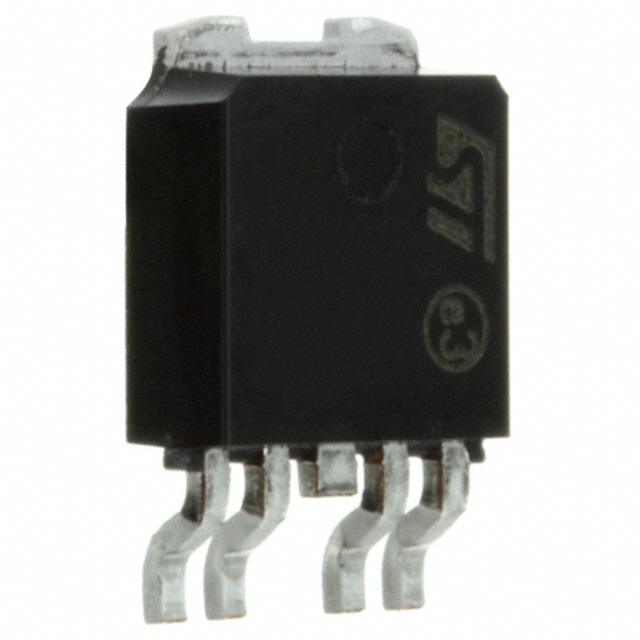

LD29080PTR

Manufacturer :

STMicroelectronics

Product Category :

Voltage Regulators - Linear

Number of Functions :

1

PSRR :

75dB (120Hz)

Dropout Voltage :

700mV

Contact Plating :

Tin

Pin Count :

4

Width :

6.2mm

Voltage Dropout (Max) :

0.7V @ 800mA

Min Output Voltage :

1.5V

Mounting Type :

Surface Mount

Terminal Position :

Single

Lifecycle Status :

ACTIVE (Last Updated: 7 months ago)

Time@Peak Reflow Temperature-Max (s) :

30

Load Regulation-Max(%) :

1%

Height :

2.4mm

ECCN Code :

EAR99

Output Configuration :

Positive

RoHS Status :

ROHS3 Compliant

Min Input Voltage :

2.5V

Max Output Current :

800mA

JESD-609 Code :

e3

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-40°C~125°C

Base Part Number :

LD29080

JESD-30 Code :

R-PSSO-G4

Mount :

Surface Mount

Number of Outputs :

1

Voltage - Output (Min/Fixed) :

1.23V

Input Bias Current :

2mA

Accuracy :

1 %

Lead Free :

Lead Free

Length :

6.6mm

Current - Supply (Max) :

35mA

Number of Regulators :

1

Package / Case :

TO-252-5, DPak (4 Leads + Tab), TO-252AD

Terminal Form :

Gull wing

Output Voltage :

15V

Current - Quiescent (Iq) :

180μA

Radiation Hardening :

No

Packing Method :

Tape and Reel

Output Type :

Adjustable

Control Features :

Enable

Voltage - Input (Max) :

13V

Protection Features :

Over Current, Over Temperature

Factory Lead Time :

24 Weeks

Peak Reflow Temperature (Cel) :

260

Reference Voltage :

1.2607V

Quiescent Current :

2mA

Number of Terminations :

4

Voltage - Output (Max) :

12.3V

Output Voltage Accuracy :

1 %

Dropout Voltage1-Nom :

1.27V

Number of Pins :

5
