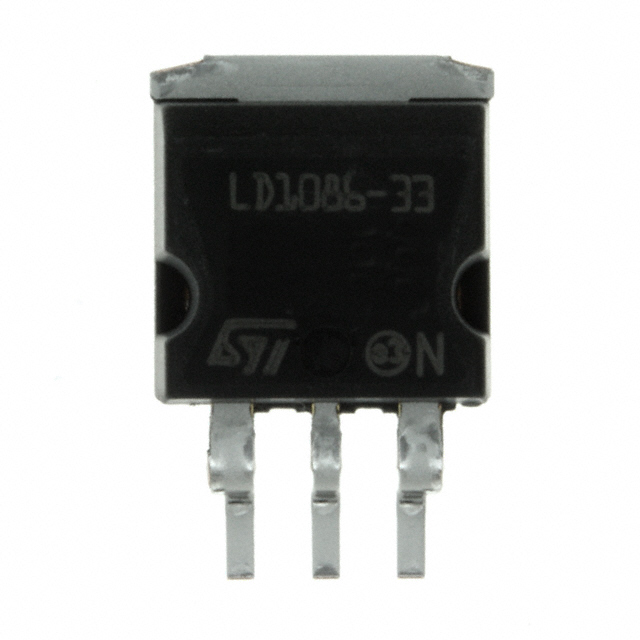

LD1086D2M33TR

Manufacturer :

STMicroelectronics

Product Category :

Voltage Regulators - Linear

Number of Terminations :

3

Output Type :

FIXED

Packing Method :

Tape and Reel

Terminal Pitch :

2.54mm

Output Voltage :

3.3V

Radiation Hardening :

No

Weight :

4.535924g

Operating Temperature :

-40°C~125°C

Time@Peak Reflow Temperature-Max (s) :

30

JESD-609 Code :

e3

Min Output Voltage :

3.3V

Protection Features :

Over Current, Over Temperature

Pin Count :

3

Packaging :

Tape and Reel (TR)

Max Output Current :

1.5A

Terminal Finish :

Matte Tin (Sn) - annealed

Width :

9.35mm

Output Voltage 1 :

3.3V

Peak Reflow Temperature (Cel) :

245

Output Voltage Accuracy :

1 %

Terminal Position :

Single

Base Part Number :

LD1086

Output Configuration :

Positive

Quiescent Current :

10mA

Number of Functions :

1

Terminal Form :

Gull wing

Accuracy :

1 %

Voltage Dropout (Max) :

1.5V @ 1.5A

Mounting Type :

Surface Mount

Mount :

Surface Mount

Voltage Tolerance-Max :

2%

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Input Voltage :

6.3V

Factory Lead Time :

8 Weeks

Length :

10.4mm

RoHS Status :

ROHS3 Compliant

Input Bias Current :

5mA

REACH SVHC :

No SVHC

Number of Regulators :

1

Dropout Voltage :

1.3V

Nominal Output Voltage :

3.3V

Dropout Voltage1-Nom :

1.3V

Height :

4.6mm

PSRR :

79dB (120Hz)

Number of Outputs :

1

Lead Free :

Lead Free

Voltage - Input (Max) :

30V

ECCN Code :

EAR99

Number of Pins :

3

Package / Case :

TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
