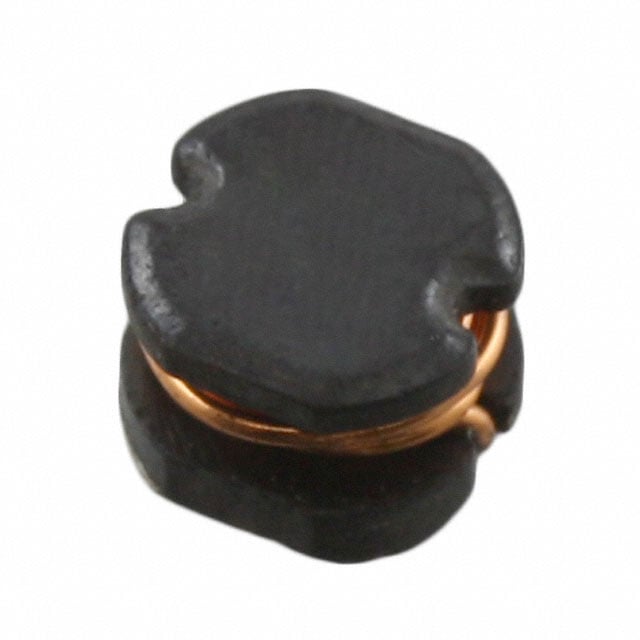

LD1-680-R
Or copy the link below:
- Mfr.Part #
- LD1-680-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- FIXED IND 68UH 460MA 1.12OHM SMD
- Stock
- 36,805
- In Stock ：
- 36,805
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Fixed Inductors
- Package / Case :
- Nonstandard
- Test Frequency :
- 100kHz
- Type :
- Wirewound
- Width :
- 3.9878mm
- Termination :
- SMD/SMT
- Series :
- LD
- Current Rating (Amps) :
- 460mA
- Published :
- 2007
- Min Operating Temperature :
- -40°C
- Max Operating Temperature :
- 125°C
- Military Standard :
- Not
- Inductance Frequency - Test :
- 100kHz
- Resistance :
- 1.12Ohm
- Tolerance :
- ±20%
- Radiation Hardening :
- No
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Max DC Current :
- 520mA
- Current Rating :
- 460mA
- Height :
- 3.175mm
- Depth :
- 4.3mm
- Size / Dimension :
- 0.177Lx0.157W 4.50mmx4.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shielding :
- Unshielded
- Factory Lead Time :
- 12 Weeks
- DC Current :
- 460mA
- Packaging :
- Tape and Reel (TR)
- Material - Core :
- Ferrite
- Operating Temperature :
- -40°C~125°C
- DC Resistance (DCR) :
- 1.12Ohm Max
- Inductance :
- 68μH
- Number of Pins :
- 2
- Current - Saturation :
- 520mA
- Height Seated (Max) :
- 0.126 3.20mm
- Composition :
- Wirewound
- RoHS Status :
- RoHS Compliant
- Length :
- 4.4958mm
- Lead Free :
- Lead Free
- Weight :
- 453.59237mg
- Datasheets
- LD1-680-R
