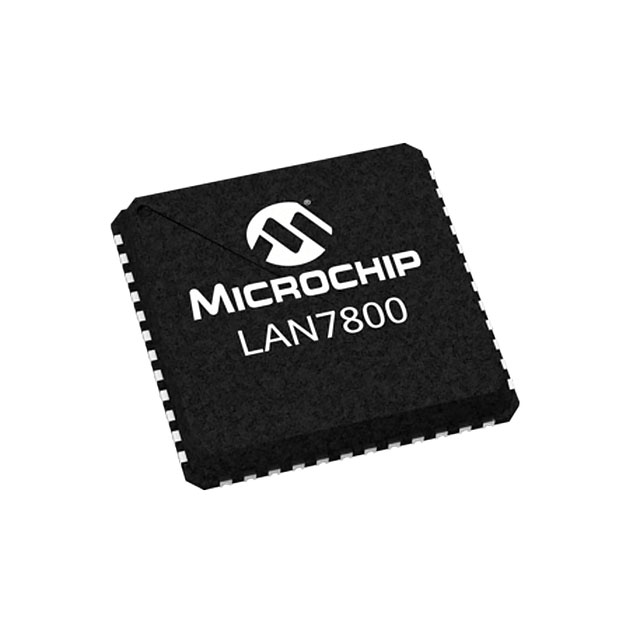

LAN7800T/VSX

Manufacturer :

Microchip Technology

Product Category :

Controllers

Product :

USB Controllers

Reach Compliance Code :

Compliant

Supply Voltage :

1.2V

Length :

6mm

Clock Frequency :

25MHz

Operating Temperature :

0°C~70°C

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Package / Case :

48-VFQFN Exposed Pad

Width :

6mm

Screening Level :

TS 16949

Product Status :

Active

Temperature Grade :

COMMERCIAL

Base Part Number :

LAN7800

Additional Feature :

ALSO HAVING IEEE 802.1Q AND IEEE 802.3AZ BUS INTERFACE STANDARD

RoHS :

Details

Brand :

Microchip Technology

Protocol :

Ethernet

Series :

--

Number of Terminations :

48

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Form :

NO LEAD

Factory Lead Time :

8 Weeks

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Supplier Device Package :

48-SQFN (6x6)

Height Seated (Max) :

0.9mm

Current - Supply :

1mA~4mA

Base Product Number :

LAN7800

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Type :

Bridge, USB to Ethernet

Published :

2017

Voltage - Supply :

1.2V 2.5V 3.3V

RoHS Status :

ROHS3 Compliant

Interface :

--

Number of Terminals :

48

Product Category :

USB Interface IC

Seated Height-Max :

0.9 mm

Subcategory :

Interface ICs

Function :

Controller

Terminal Pitch :

0.4mm

uPs/uCs/Peripheral ICs Type :

BUS CONTROLLER, UNIVERSAL SERIAL BUS

Drive Interface Standard :

IEEE 802.3; IEEE 802.3U; IEEE

Package Shape :

Square

HTS Code :

8542.31.00.01

Standards :

10/100/1000 Base-T PHY

Manufacturer :

Microchip

Terminal Position :

QUAD

JESD-30 Code :

S-XQCC-N48

Data Transfer Rate-Max :

625 MBps

Standard :

USB 3.1

Product Type :

USB Interface IC

Surface Mount :

yes

Packaging :

Tape and Reel (TR)
