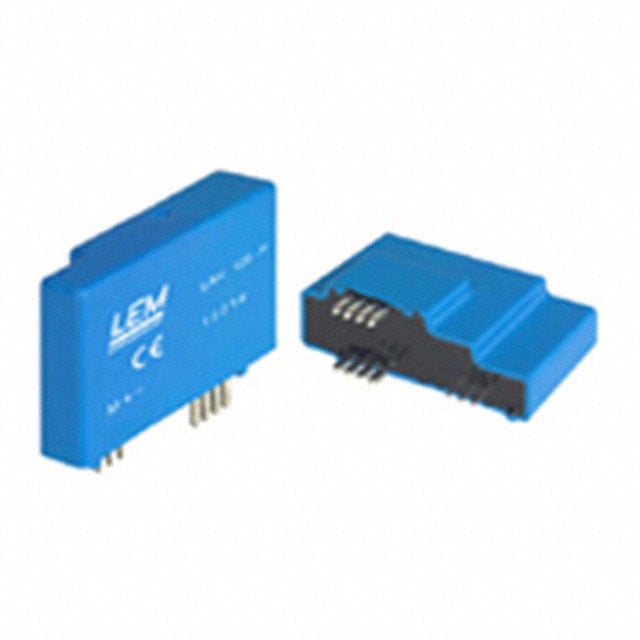

LAH 125-P
Or copy the link below:
- Mfr.Part #
- LAH 125-P
- Manufacturer
- LEM USA, Inc.
- Package / Case
- Module
- Datasheet
- Download
- Description
- SENSOR CURRENT HALL 125A AC/DC
- Stock
- 25
- In Stock ：
- 25
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEM USA, Inc.
- Product Category :
- Current Sensors
- Sensor Type :
- Hall Effect, Closed Loop
- Polarization :
- Bidirectional
- Series :
- LAH
- Frequency :
- DC~100kHz
- Number of Channels :
- 1
- Analog IC - Other Type :
- ANALOG CIRCUIT
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Number of Terminations :
- 11
- Current - Sensing :
- 125A
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Accuracy :
- ±0.41%
- Number of Functions :
- 1
- Supply Voltage :
- 12V
- Response Time :
- 1μs
- Output :
- Ratiometric, Current
- Current - Supply (Max) :
- 144mA
- Surface Mount :
- No
- Mounting Type :
- Through Hole
- Voltage - Supply :
- ±12V~15V
- Terminal Form :
- UNSPECIFIED
- Factory Lead Time :
- 8 Weeks
- Package / Case :
- Module
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- For Measuring :
- AC/DC
- Operating Temperature :
- -40°C~85°C
- Linearity :
- ±0.15%
- Terminal Position :
- UNSPECIFIED
- Datasheets
- LAH 125-P
LAH Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C ±12V~15V DC~100kHz 125A Accuracy-±0.41% Linearity-±0.15%
LAH 125-P Overview
Module packages are used for the safety protection of current sensors. In order to protect these current sensors from damage, they are packaged in the Bulk. They should be capable of supplying a maximum current of 144mA. A 11 termination is present on the current sensors. A current sensor can supply voltage of 12V while working.
LAH 125-P Features
Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: ±12V~15V
Frequency: DC~100kHz
Sensing Current: 125A
Module Package
LAH 125-P Applications
There are a lot of LEM USA Inc.
LAH 125-P Current Sensors applications.
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
- General purpose inverters
- AC variable speed drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies(UPS)
- Switched Mode Power Supplies(SMPS)
