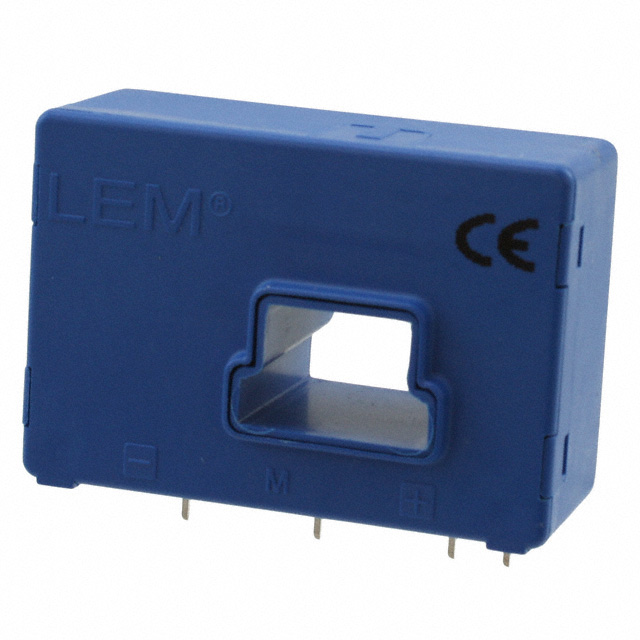

LA200-P
Or copy the link below:
- Mfr.Part #
- LA200-P
- Manufacturer
- LEM USA, Inc.
- Package / Case
- Module
- Datasheet
- Download
- Description
- SENSOR CURRENT HALL 200A AC/DC
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEM USA, Inc.
- Product Category :
- Current Sensors
- Linearity :
- ±0.15%
- Sensor Type :
- Hall Effect, Closed Loop
- Surface Mount :
- No
- Neg Supply Voltage-Nom (Vsup) :
- -12V
- Max Supply Current :
- 16mA
- Height Seated (Max) :
- 33.8mm
- Response Time :
- 1μs
- Number of Channels :
- 1
- Secondary Current :
- 100mA
- Packaging :
- Bulk
- Terminal Position :
- Single
- Package / Case :
- Module
- Analog IC - Other Type :
- ANALOG CIRCUIT
- Operating Temperature :
- -40°C~85°C
- Supply Voltage :
- 12V
- For Measuring :
- AC/DC
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Voltage - Supply :
- ±12V~15V
- Polarization :
- Bidirectional
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Output :
- Ratiometric, Current
- Frequency :
- DC~100kHz
- Accuracy :
- ±0.40%
- Series :
- LA
- Factory Lead Time :
- 6 Weeks
- RoHS Status :
- RoHS Compliant
- Number of Pins :
- 4
- Pin Count :
- 4
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Mounting Type :
- Through Hole
- Operating Supply Voltage :
- 15V
- Number of Terminations :
- 4
- Wire/Cable Diameter :
- 11 mm
- Current - Sensing :
- 200A
- Number of Functions :
- 1
- Datasheets
- LA200-P
LA Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C ±12V~15V DC~100kHz 200A Accuracy-±0.40% Linearity-±0.15%
LA200-P Overview
To ensure safety, current sensors are encapsulated in Module packages. A protective Bulk is placed over these current sensors in order to prevent damage to the devices. It is recommended that current sensors do not supply a current greater than 16mA. Current sensors have terminations of 4. This current sensor contains 4 pins. When they operate, current sensors can supply 15V voltage. It is possible for these current sensors to supply voltages of 12V while in operation. A 4 pin electronic part is used in this product.
LA200-P Features
Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: ±12V~15V
Frequency: DC~100kHz
Sensing Current: 200A
Module Package
LA200-P Applications
There are a lot of LEM USA Inc.
LA200-P Current Sensors applications.
- DC and AC power monitoring
- Closed-L oop DC- and AC-Current Sensor Modules
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
- General purpose inverters
- AC variable speed drives
- Static converters for DC motor drives
