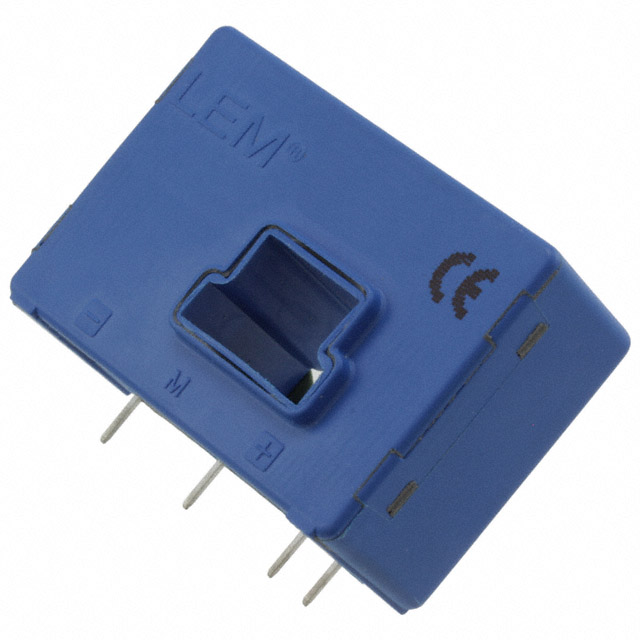

LA 125-P/SP4
Or copy the link below:
- Mfr.Part #
- LA 125-P/SP4
- Manufacturer
- LEM USA, Inc.
- Package / Case
- Module, Single Pass Through
- Datasheet
- Download
- Description
- SENSOR CURRENT HALL 125A AC/DC
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LEM USA, Inc.
- Product Category :
- Current Sensors
- Terminal Position :
- UNSPECIFIED
- Analog IC - Other Type :
- ANALOG CIRCUIT
- RoHS Status :
- RoHS Compliant
- For Measuring :
- AC/DC
- Number of Channels :
- 1
- Linearity :
- ±0.1%
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Supply Voltage :
- 12V
- Frequency :
- DC~150kHz
- Package / Case :
- Module, Single Pass Through
- Operating Temperature :
- -40°C~85°C
- Mounting Type :
- Through Hole
- Neg Supply Voltage-Nom (Vsup) :
- -12V
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- JESD-30 Code :
- R-PXSS-T4
- Number of Functions :
- 1
- Packaging :
- Bulk
- Series :
- LA
- Accuracy :
- ±0.5%
- Surface Mount :
- No
- Published :
- 2009
- Polarization :
- Bidirectional
- Response Time :
- 0.5μs
- Factory Lead Time :
- 14 Weeks
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Sensor Type :
- Hall Effect, Closed Loop
- Current - Sensing :
- 125A
- Voltage - Supply :
- ±12V~15V
- Output :
- Ratiometric, Current
- Number of Terminations :
- 4
- Current - Supply (Max) :
- 10mA
- Datasheets
- LA 125-P/SP4
LA Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~85°C ±12V~15V DC~150kHz 125A Accuracy-±0.5% Linearity-±0.1%
LA 125-P/SP4 Overview
To ensure the safety of the current sensors, they are packaged in Module, Single Pass Through packages. A Bulk package protects these current sensors from damage. These current sensors should provide a maximum current of 10mA. Current sensors have terminations of 4. While working, these current sensors can supply a voltage of 12V.
LA 125-P/SP4 Features
Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: ±12V~15V
Frequency: DC~150kHz
Sensing Current: 125A
Module, Single Pass Through Package
LA 125-P/SP4 Applications
There are a lot of LEM USA Inc.
LA 125-P/SP4 Current Sensors applications.
- Power factor correction
- Overcurrent protection
- DC and AC power monitoring
- Closed-L oop DC- and AC-Current Sensor Modules
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
- General purpose inverters
