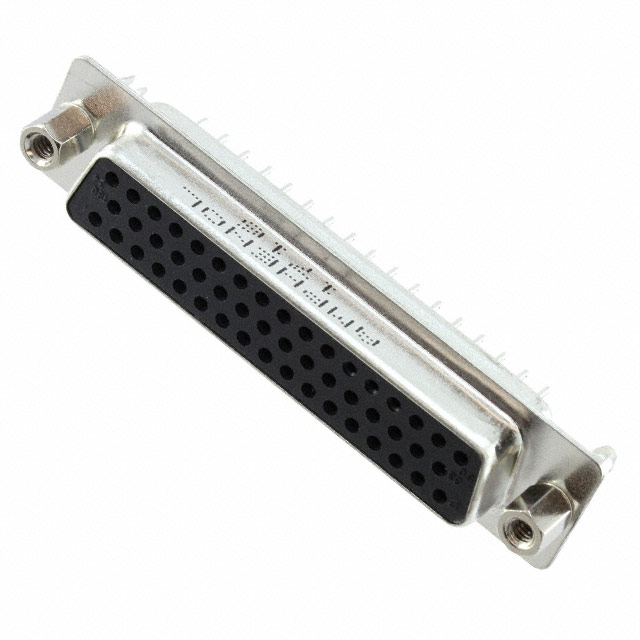

L77SDDH50SOL2RM8
Or copy the link below:
- Mfr.Part #
- L77SDDH50SOL2RM8
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 50POS VERT SLDR
- Stock
- 11,400
- In Stock ：
- 11,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Current Rating :
- 5A
- Number of Rows :
- 3
- Max Operating Temperature :
- 155°C
- Pitch :
- 2.76mm
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 6 Weeks
- Termination :
- Solder
- Depth :
- 15.37mm
- Flange Feature :
- Board Side (4-40); Mating Side, Female Screwlock (4-40)
- Number of Positions :
- 50
- Min Operating Temperature :
- -55°C
- Current Rating (Amps) :
- 5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Signal
- Color :
- Black
- Series :
- SD
- Contact Finish Thickness :
- Flash
- Published :
- 2004
- Contact Plating :
- Gold
- Mounting Type :
- Through Hole
- Max Supply Voltage (AC) :
- 250V
- Shell Size, Connector Layout :
- 5 DD D
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Packaging :
- Tray
- Number of Ports :
- 1
- Connector Type :
- Receptacle, Female Sockets
- Contact Material :
- Phosphor Bronze
- Number of Terminations :
- 50
- Shell Material, Finish :
- Steel, Tin Plated
- Voltage - Rated :
- 250V
- Operating Temperature :
- -55°C~125°C
- Orientation :
- Straight
- Connector Style :
- D-Sub
- Feature :
- Board Lock
- Length :
- 67.06mm
- Contact Finish :
- Gold
- Housing Material :
- Thermoplastic
- Contact Form :
- Stamped
- Dielectric Material :
- Thermoplastic, Glass Filled
- Datasheets
- L77SDDH50SOL2RM8
SD Series D-Sub Receptacle, Female Sockets 50-Position Signal Solder 5 DD D Through Hole Phosphor Bronze Gold Steel, Tin Plated
L77SDDH50SOL2RM8 Overview
It comes in Receptacle, Female Sockets packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the SD Series.You should use it when it's below 155°C.A minimum temperature of -55°C is required for the operation of this device.A variety of tasks can be managed through its 1 ports.In many ways, its Board Lock feature makes it more powerful.Through Hole is used to mount the part.There are no terminations on the chip.In this case, the device operates at -55°C~125°C Operating Temperature.
L77SDDH50SOL2RM8 Features
50 basic kinds of terminations
SD series
L77SDDH50SOL2RM8 Applications
There are a lot of Amphenol ICC (Commercial Products)
L77SDDH50SOL2RM8 D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
