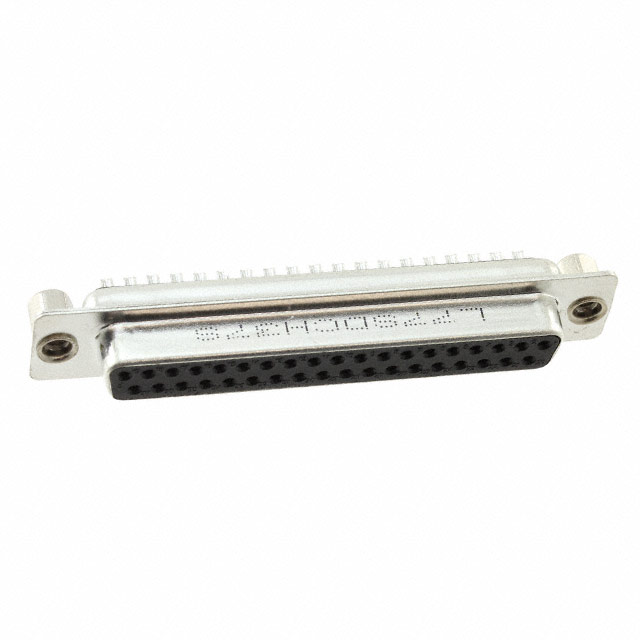

L77SDCH37S

Manufacturer :

Amphenol Communications Solutions

Product Category :

D-Sub Connector Assemblies

Series :

SD

Number of Rows :

2

Factory Lead Time :

5 Weeks

Termination :

Solder Cup

Option :

GENERAL PURPOSE

Operating Temperature :

-55°C~125°C

Shell Size, Connector Layout :

4 DC C

Dielectric Material :

Thermoplastic, Glass Filled

RoHS Status :

RoHS Compliant

Connector Type :

Receptacle, Female Sockets

Contact Type :

Signal

UL Flammability Code :

94V-0

Contact Material :

Phosphor Bronze

Total Number of Contacts :

37

Contact Finish Thickness :

Flash

Shell Material, Finish :

Steel, Tin Plated

Mount :

Free Hanging, Panel

Feature :

Board Lock

Dielectric Withstanding Voltage :

1400VAC V

Reliability :

COMMERCIAL

Flange Feature :

Cable Side (4-40)

DIN Conformance :

No

Filter Feature :

No

Empty Shell :

No

Pitch :

2.76mm

Mixed Contacts :

No

Rated Current (Signal) :

5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e3

Shell Finish :

Tin

Connector Style :

D-Sub

Number of Positions :

37

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

250V

Packaging :

Tray

Insulation Resistance :

1000000000Ohm

Housing Material :

Glass

Current Rating :

5A

MIL Conformance :

yes

Reach Compliance Code :

Unknown

Orientation :

Straight

Pbfree Code :

yes

Mounting Type :

Free Hanging (In-Line)

Contact Form :

Stamped

Contact Finish :

Gold

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reference Standard :

UL

IEC Conformance :

No

Color :

Black
