L77SDC37SVFC309
Or copy the link below:
- Mfr.Part #
- L77SDC37SVFC309
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 37POS SLDR CUP
- Stock
- 458
- In Stock ：
- 458
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Voltage - Rated :
- 250V
- Orientation :
- Straight
- Series :
- SD
- Number of Positions :
- 37
- Connector Style :
- D-Sub
- Termination :
- Solder Cup
- Number of Rows :
- 2
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Min Operating Temperature :
- -55°C
- Operating Temperature :
- -55°C~125°C
- Shell Size, Connector Layout :
- 4 DC C
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Dielectric Material :
- Thermoplastic, Glass Filled
- Connector Type :
- Receptacle, Female Sockets
- Housing Material :
- Glass
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 5A
- Mount :
- Free Hanging, Panel
- Packaging :
- Tray
- Factory Lead Time :
- 6 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Contact Type :
- Signal
- Contact Material :
- Phosphor Bronze
- Contact Form :
- Stamped
- Max Operating Temperature :
- 155°C
- Pitch :
- 2.76mm
- Color :
- Black
- Contact Finish :
- Gold
- Shell Material, Finish :
- Steel, Tin Plated
- Contact Plating :
- Gold
- Current Rating (Amps) :
- 5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- L77SDC37SVFC309
L77SDC37SVFC309 Documents

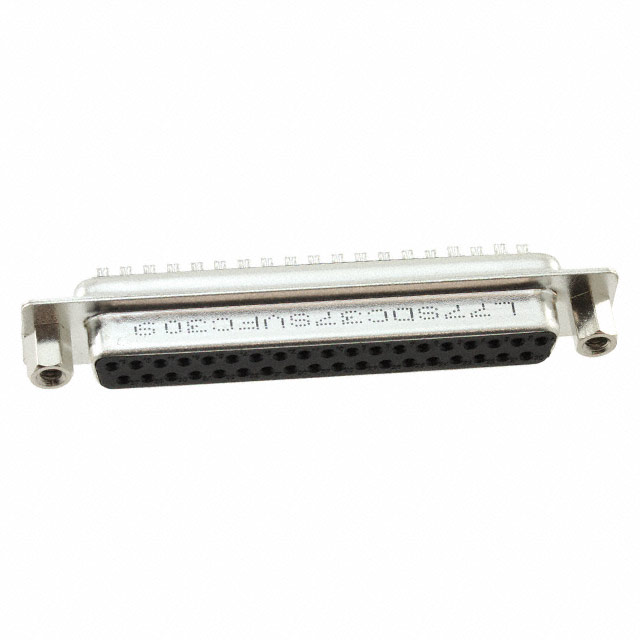

SD Series D-Sub Receptacle, Female Sockets 37-Position Signal Solder Cup 4 DC C Free Hanging (In-Line) Phosphor Bronze Gold Steel, Tin Plated
L77SDC37SVFC309 Overview
This product is packaged in a Receptacle, Female Sockets box.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Tray.Product number SD belongs to the SD Series.Whenever the temperature is below 155°C, it's best.There is a minimum temperature requirement of [0°C] for this device.There is a Free Hanging, Panel mount on the part.This device operates at a temperature of -55°C~125°C.
L77SDC37SVFC309 Features
SD series
L77SDC37SVFC309 Applications
There are a lot of Amphenol ICC (Commercial Products)
L77SDC37SVFC309 D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
