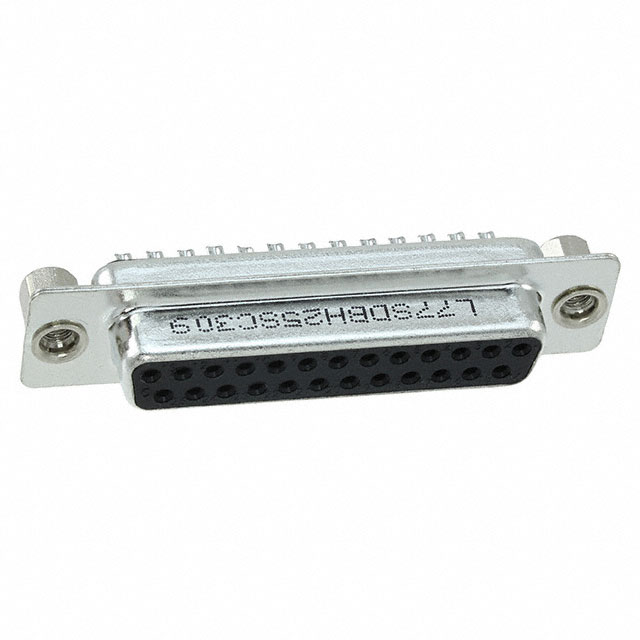

L77SDBH25SC309
Or copy the link below:
- Mfr.Part #
- L77SDBH25SC309
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25POS SLDR CUP
- Stock
- 25,992
- In Stock ：
- 25,992
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Current Rating (Amps) :
- 5A
- Contact Material :
- Phosphor Bronze
- Flange Feature :
- Cable Side (4-40)
- Color :
- Black
- Orientation :
- Straight
- Connector Type :
- Receptacle, Female Sockets
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions :
- 25
- Material Flammability Rating :
- UL94 V-0
- Connector Style :
- D-Sub
- Voltage - Rated :
- 250V
- Shell Size, Connector Layout :
- 3 DB B
- Mount :
- Free Hanging, Panel
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -55°C~125°C
- Packaging :
- Tray
- Contact Form :
- Stamped
- Shell Material, Finish :
- Steel, Tin Plated
- Termination :
- Solder Cup
- Series :
- SD
- Mounting Type :
- Free Hanging (In-Line)
- Contact Type :
- Signal
- Contact Plating :
- Gold
- Pitch :
- 2.76mm
- Dielectric Material :
- Thermoplastic, Glass Filled
- Max Operating Temperature :
- 155°C
- Factory Lead Time :
- 6 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Glass
- Contact Finish :
- Gold
- Min Operating Temperature :
- -55°C
- Current Rating :
- 5A
- Number of Rows :
- 2
- Datasheets
- L77SDBH25SC309
SD Series D-Sub Receptacle, Female Sockets 25-Position Signal Solder Cup 3 DB B Free Hanging (In-Line) Phosphor Bronze Gold Steel, Tin Plated
L77SDBH25SC309 Overview
It comes in Receptacle, Female Sockets packaging.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Tray case for packaging the product.This product is part of the SD Series.You should use it when it's below 155°C.A minimum temperature of -55°C is required for the operation of this device.Free Hanging, Panel is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
L77SDBH25SC309 Features
SD series
L77SDBH25SC309 Applications
There are a lot of Amphenol ICC (Commercial Products)
L77SDBH25SC309 D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
