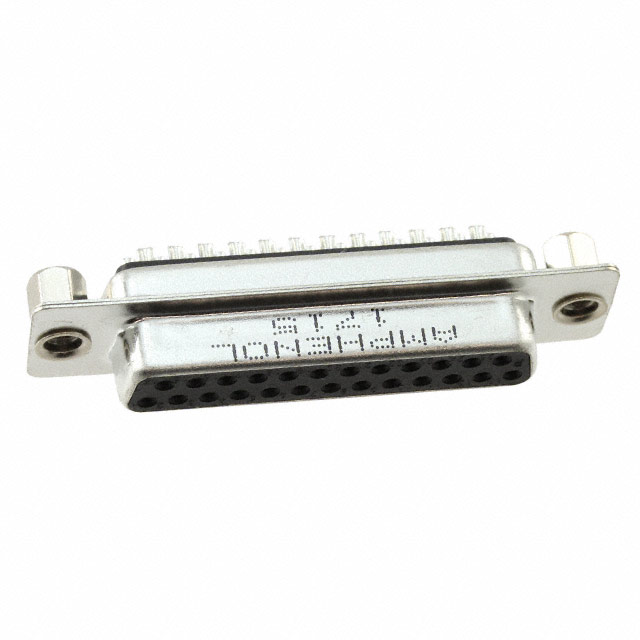

L77SDBH25S

Manufacturer :

Amphenol Communications Solutions

Product Category :

D-Sub Connector Assemblies

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Solder Cup

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Orientation :

Straight

Mount :

Free Hanging, Panel

Pitch :

2.76mm

Operating Temperature :

-55°C~125°C

Mounting Type :

Free Hanging (In-Line)

Factory Lead Time :

5 Weeks

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Color :

Black

Dielectric Withstanding Voltage :

1400VAC V

IEC Conformance :

No

Reliability :

COMMERCIAL

Current Rating :

5A

Contact Finish Thickness :

Flash

RoHS Status :

RoHS Compliant

Gender :

FEMALE

Pbfree Code :

yes

Series :

SD

Contact Type :

Signal

Published :

2008

Reference Standard :

UL

Connector Type :

Receptacle, Female Sockets

Shell Material, Finish :

Steel, Tin Plated

Empty Shell :

No

MIL Conformance :

yes

Reach Compliance Code :

Unknown

UL Flammability Code :

94V-0

Insulation Resistance :

1000000000Ohm

Dielectric Material :

Thermoplastic, Glass Filled

Option :

GENERAL PURPOSE

Contact Form :

Stamped

Contact Material :

Phosphor Bronze

JESD-609 Code :

e3

Number of Positions :

25

Shell Finish :

Tin

Number of Rows :

2

Contact Finish :

Gold

Flange Feature :

Cable Side (4-40)

Shell Size, Connector Layout :

3 DB B

Voltage - Rated :

250V

DIN Conformance :

No

Connector Style :

D-Sub

Housing Material :

Glass

Packaging :

Tray

Total Number of Contacts :

25

Rated Current (Signal) :

5A
