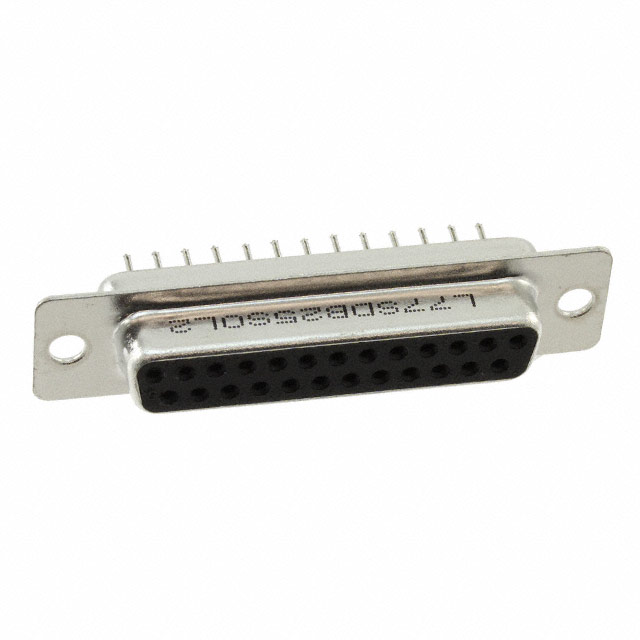

L77SDB25SOL2
Or copy the link below:
- Mfr.Part #
- L77SDB25SOL2
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25POS VERT SLDR
- Stock
- 9,200
- In Stock ：
- 9,200
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Depth :
- 12.55mm
- Connector Style :
- D-Sub
- Pitch :
- 2.76mm
- Contact Plating :
- Gold
- Shell Size, Connector Layout :
- 3 DB B
- Series :
- SD
- Orientation :
- Straight
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 2
- Contact Type :
- Signal
- Contact Finish Thickness :
- Flash
- Connector Type :
- Receptacle, Female Sockets
- Mount :
- Through Hole
- Contact Finish :
- Gold
- Mounting Type :
- Through Hole
- Color :
- Black
- Contact Material :
- Phosphor Bronze
- Dielectric Material :
- Thermoplastic, Glass Filled
- Max Supply Voltage (AC) :
- 250V
- Current Rating :
- 5A
- Max Operating Temperature :
- 155°C
- Operating Temperature :
- -55°C~125°C
- Flange Feature :
- Housing/Shell (Unthreaded)
- Contact Form :
- Stamped
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 250V
- Shell Material, Finish :
- Steel, Tin Plated
- Min Operating Temperature :
- -55°C
- Number of Ports :
- 1
- Number of Positions :
- 25
- Published :
- 2004
- Packaging :
- Tray
- Material Flammability Rating :
- UL94 V-0
- Length :
- 53.04mm
- Current Rating (Amps) :
- 5A
- Housing Material :
- Thermoplastic
- Termination :
- Solder
- Number of Terminations :
- 25
- Factory Lead Time :
- 5 Weeks
- Datasheets
- L77SDB25SOL2
SD Series D-Sub Receptacle, Female Sockets 25-Position Signal Solder 3 DB B Through Hole Phosphor Bronze Gold Steel, Tin Plated
L77SDB25SOL2 Overview
The packaging contains Receptacle, Female Sockets.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the SD Series.When the temperature is below 155°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.The device has 1 ports that can be used to manage a variety of tasks.Part Through Hole is mounted to the part.The chip is terminated with a 25.As a result, the device runs at -55°C~125°C Operating Temperature.
L77SDB25SOL2 Features
25 basic kinds of terminations
SD series
L77SDB25SOL2 Applications
There are a lot of Amphenol ICC (Commercial Products)
L77SDB25SOL2 D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
