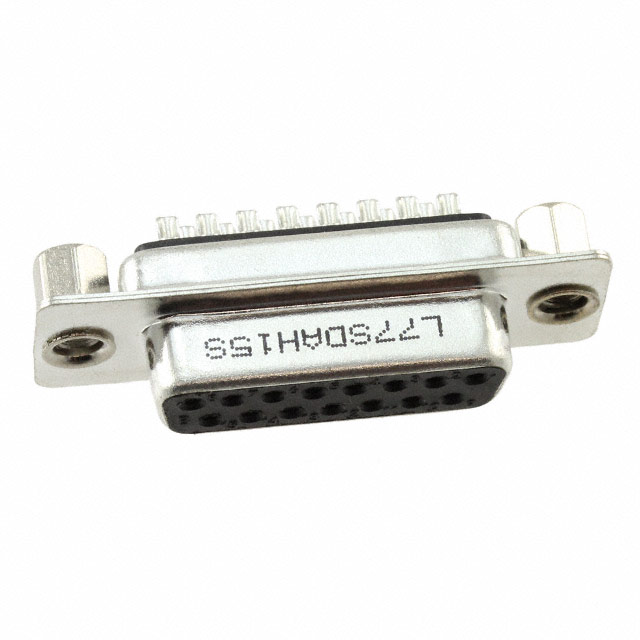

L77SDAH15S

Manufacturer :

Amphenol Communications Solutions

Product Category :

D-Sub Connector Assemblies

Connector Type :

Receptacle, Female Sockets

Option :

GENERAL PURPOSE

Reference Standard :

UL

Number of Positions :

15

Gender :

FEMALE

Shell Finish :

Tin

Shell Material, Finish :

Steel, Tin Plated

Mounting Type :

Free Hanging (In-Line)

Contact Form :

Stamped

Rated Current (Signal) :

5A

Housing Material :

Glass

Reach Compliance Code :

Unknown

Insulation :

Insulated

Shell Size, Connector Layout :

2 DA A

Filter Feature :

No

DIN Conformance :

No

Color :

Black

Dielectric Withstanding Voltage :

1400VAC V

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Dielectric Material :

Thermoplastic, Glass Filled

JESD-609 Code :

e3

Mixed Contacts :

No

Reliability :

COMMERCIAL

Operating Temperature :

-55°C~125°C

Factory Lead Time :

5 Weeks

Contact Finish Thickness :

Flash

Number of Rows :

2

Voltage - Rated :

250V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish :

Gold

Series :

SD

Pbfree Code :

yes

Termination :

Solder Cup

UL Flammability Code :

94V-0

Contact Type :

Signal

Orientation :

Straight

Insulation Material :

Thermoplastic

Pitch :

2.74mm

Connector Style :

D-Sub

Flange Feature :

Cable Side (4-40)

Total Number of Contacts :

15

Mount :

Free Hanging, Panel

Shell Material :

Steel

Plating :

Tin

IEC Conformance :

No

MIL Conformance :

yes

Packaging :

Tray

Contact Material :

Phosphor Bronze

Empty Shell :

No

Current Rating :

5A
