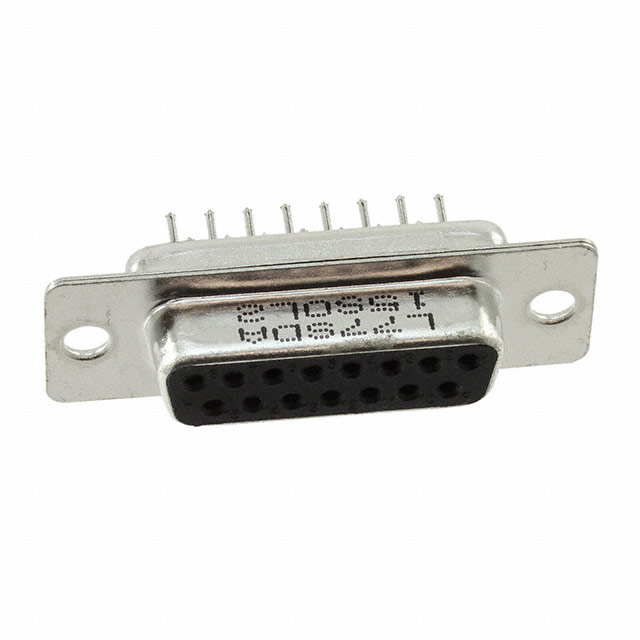

L77SDA15SOL2
Or copy the link below:
- Mfr.Part #
- L77SDA15SOL2
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS VERT SLDR
- Stock
- 292
- In Stock ：
- 292
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 250V
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness :
- Flash
- Factory Lead Time :
- 5 Weeks
- Current Rating (Amps) :
- 5A
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Packaging :
- Tray
- Connector Type :
- Receptacle, Female Sockets
- Housing Material :
- Thermoplastic
- Depth :
- 12.55mm
- Shell Material, Finish :
- Steel, Tin Plated
- Min Operating Temperature :
- -55°C
- Mount :
- Through Hole
- Orientation :
- Straight
- Current Rating :
- 5A
- Contact Plating :
- Gold
- Contact Type :
- Signal
- Shell Size, Connector Layout :
- 2 DA A
- Operating Temperature :
- -55°C~125°C
- Series :
- SD
- Flange Feature :
- Housing/Shell (Unthreaded)
- Length :
- 39.24mm
- Max Supply Voltage (AC) :
- 250V
- Number of Positions :
- 15
- Pitch :
- 2.74mm
- Connector Style :
- D-Sub
- Max Operating Temperature :
- 155°C
- Dielectric Material :
- Thermoplastic, Glass Filled
- Contact Form :
- Stamped
- Contact Finish :
- Gold
- Number of Rows :
- 2
- Number of Ports :
- 1
- Color :
- Black
- Published :
- 2004
- Number of Terminations :
- 15
- RoHS Status :
- RoHS Compliant
- Datasheets
- L77SDA15SOL2
L77SDA15SOL2 Documents
SD Series D-Sub Receptacle, Female Sockets 15-Position Signal Solder 2 DA A Through Hole Phosphor Bronze Gold Steel, Tin Plated
L77SDA15SOL2 Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the SD Series of products.It's best to use it when the temperature is below 155°C.This device must operate at a minimum temperature of -55°C.It features 1 ports for managing a variety of tasks.The part is mounted by Through Hole.The chip has 15 terminations.The device runs in -55°C~125°C Operating Temperature.
L77SDA15SOL2 Features
15 basic kinds of terminations
SD series
L77SDA15SOL2 Applications
There are a lot of Amphenol ICC (Commercial Products)
L77SDA15SOL2 D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
