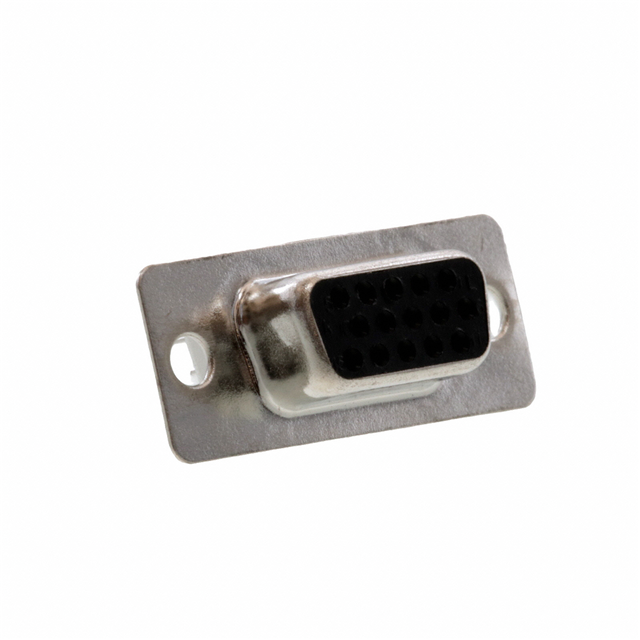

L77HDE15SOL2
Or copy the link below:
- Mfr.Part #
- L77HDE15SOL2
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD RCPT 15P VERT SLDR
- Stock
- 149
- In Stock ：
- 149
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Housing Material :
- Thermoplastic
- Dielectric Material :
- Thermoplastic, Glass Filled
- Connector Type :
- Receptacle, Female Sockets
- Packaging :
- Tray
- Number of Contacts :
- 15
- Operating Temperature :
- -55°C~155°C
- Number of Rows :
- 3
- Length :
- 30.84mm
- Current Rating (Amps) :
- 3A
- Orientation :
- Straight
- Number of Positions :
- 15
- Mount :
- Through Hole
- Shell Size, Connector Layout :
- 1 DE E High Density
- Depth :
- 12.55mm
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Shell Material, Finish :
- Steel, Tin Plated
- Max Operating Temperature :
- 155°C
- Contact Finish Thickness :
- Flash
- Mounting Type :
- Through Hole
- Number of Terminations :
- 15
- Connector Style :
- D-Sub, High Density
- Termination :
- Solder
- Gender :
- Receptacle
- Max Supply Voltage (AC) :
- 250V
- Voltage - Rated :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Material :
- Steel
- Number of Ports :
- 1
- Contact Plating :
- Gold
- Factory Lead Time :
- 5 Weeks
- Contact Type :
- Signal
- REACH SVHC :
- Unknown
- Current Rating :
- 3A
- Contact Material :
- Phosphor Bronze
- Flange Feature :
- Housing/Shell (Unthreaded)
- Material Flammability Rating :
- UL94 V-0
- Contact Form :
- Stamped
- Series :
- HD
- Pitch :
- 2.29mm
- Min Operating Temperature :
- -55°C
- Datasheets
- L77HDE15SOL2
L77HDE15SOL2 Documents
HD Series D-Sub, High Density Receptacle, Female Sockets 15-Position Receptacle Signal Solder 1 DE E High Density Through Hole Phosphor Bronze Gold Steel, Tin Plated
L77HDE15SOL2 Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the HD Series of products.It's best to use it when the temperature is below 155°C.This device must operate at a minimum temperature of -55°C.It features 1 ports for managing a variety of tasks.The part is mounted by Through Hole.The chip has 15 terminations.The device runs in -55°C~155°C Operating Temperature.
L77HDE15SOL2 Features
15 basic kinds of terminations
HD series
L77HDE15SOL2 Applications
There are a lot of Amphenol ICC (Commercial Products)
L77HDE15SOL2 D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
