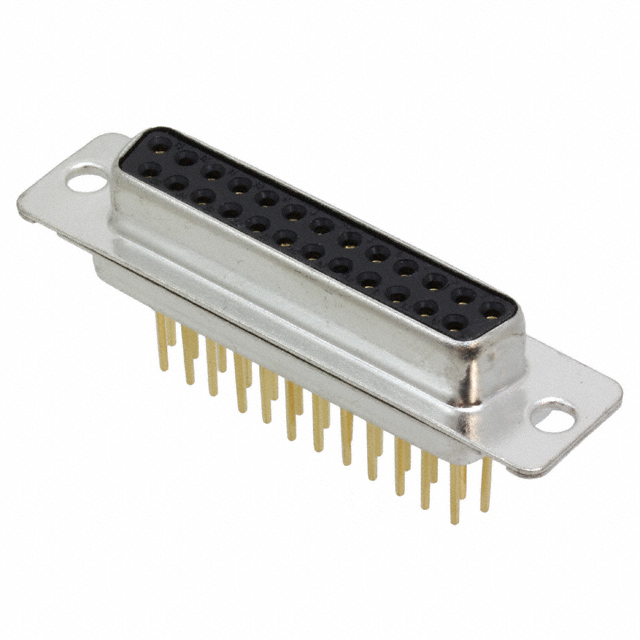

L77DB25SF179
Or copy the link below:
- Mfr.Part #
- L77DB25SF179
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25POS PNL MNT WW
- Stock
- 73
- In Stock ：
- 73
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- DIN Conformance :
- No
- REACH SVHC :
- Unknown
- Packaging :
- Tray
- Shell Material, Finish :
- Steel, Tin Plated
- Number of Positions :
- 25
- Package / Case :
- Metal
- Shell Size, Connector Layout :
- 3 DB B
- Contact Finish :
- Gold
- Housing Material :
- Thermoplastic
- Mounting Type :
- Panel Mount, Through Hole
- IEC Conformance :
- No
- MIL Conformance :
- No
- Filter Feature :
- No
- Connector Type :
- Receptacle, Female Sockets
- Connector Style :
- D-Sub
- Shell Material :
- Steel
- Depth :
- 12.93mm
- Contact Finish Thickness :
- 8.00μin 0.203μm
- Gender :
- Receptacle
- Current Rating :
- 7.5A
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 25
- Number of Ports :
- 1
- RoHS Status :
- RoHS Compliant
- Contact Type :
- Signal
- Color :
- Black
- Mount :
- Panel, Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Straight
- Material Flammability Rating :
- UL94 V-0
- Body Material :
- Metal, Steel
- Flange Feature :
- Housing/Shell (Unthreaded)
- Published :
- 2009
- Contact Material :
- Brass
- Mixed Contacts :
- No
- Operating Temperature :
- -55°C~125°C
- Length :
- 53.42mm
- Voltage - Rated :
- 300V
- Approval Agency :
- UL
- UL Flammability Code :
- 94V-0
- Empty Shell :
- No
- Dielectric Material :
- Thermoplastic, Glass Filled
- Factory Lead Time :
- 6 Weeks
- Series :
- D
- Number of Rows :
- 2
- Shell Finish :
- Tin
- Termination :
- Wire Wrap
- Contact Form :
- Machined
- Pbfree Code :
- yes
- Datasheets
- L77DB25SF179
L77DB25SF179 Documents
D Series D-Sub Receptacle, Female Sockets 25-Position Receptacle Signal Wire Wrap 3 DB B Panel Mount, Through Hole Brass Gold Steel, Tin Plated
L77DB25SF179 Overview
The packaging contains Receptacle, Female Sockets.This device is mounted in the Panel Mount, Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the D Series.Metal indicates that the package contains an enclosed device.The device has 1 ports that can be used to manage a variety of tasks.Part Panel, Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
L77DB25SF179 Features
D series
L77DB25SF179 Applications
There are a lot of Amphenol ICC (Commercial Products)
L77DB25SF179 D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
