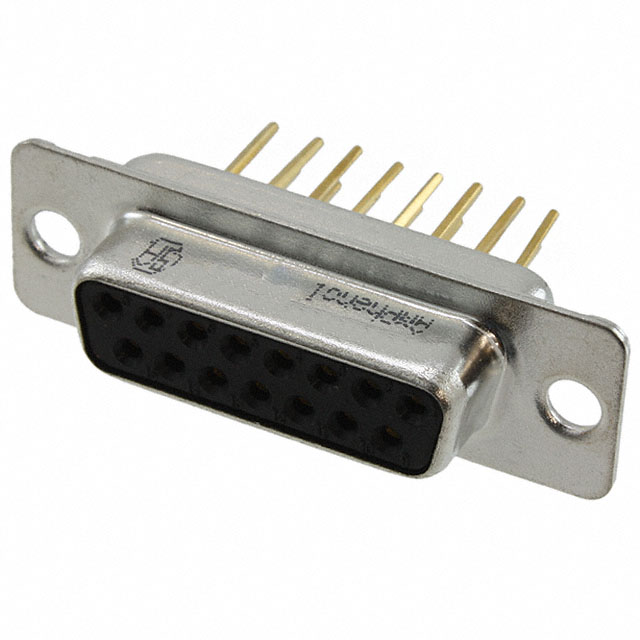

L77DA15SF179
Or copy the link below:
- Mfr.Part #
- L77DA15SF179
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 15POS PNL MNT WW
- Stock
- 257
- In Stock ：
- 257
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Max Operating Temperature :
- 85°C
- Mounting Type :
- Panel Mount, Through Hole
- Contact Material :
- Brass
- Length :
- 39.52mm
- Radiation Hardening :
- No
- Dielectric Material :
- Thermoplastic, Glass Filled
- Published :
- 2006
- Housing Material :
- Thermoplastic
- Factory Lead Time :
- 6 Weeks
- Number of Terminations :
- 15
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Receptacle, Female Sockets
- Number of Ports :
- 1
- Shell Material :
- Steel
- Number of Rows :
- 2
- Flange Feature :
- Housing/Shell (Unthreaded)
- Number of Positions :
- 15
- Voltage - Rated :
- 300V
- Operating Temperature :
- -55°C~125°C
- Contact Form :
- Machined
- Material Flammability Rating :
- UL94 V-0
- Series :
- D
- Contact Plating :
- Gold
- Mount :
- Panel, Through Hole
- Packaging :
- Tray
- Contact Type :
- Signal
- Contact Finish :
- Gold
- Connector Style :
- D-Sub
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Size, Connector Layout :
- 2 DA A
- Approval Agency :
- UL
- Termination :
- Wire Wrap
- Number of Contacts :
- 15
- Depth :
- 12.93mm
- Contact Finish Thickness :
- 8.00μin 0.203μm
- Current Rating :
- 7.5A
- Shell Material, Finish :
- Steel, Tin Plated
- Gender :
- Receptacle
- Orientation :
- Straight
- Min Operating Temperature :
- -55°C
- Package / Case :
- Metal
- Current Rating (Amps) :
- 7.5A
- Datasheets
- L77DA15SF179
L77DA15SF179 Documents
D Series D-Sub Receptacle, Female Sockets 15-Position Receptacle Signal Wire Wrap 2 DA A Panel Mount, Through Hole Brass Gold Steel, Tin Plated
L77DA15SF179 Overview
This product is packaged in a Receptacle, Female Sockets box.There is a Panel Mount, Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number D belongs to the D Series.Whenever the temperature is below 85°C, it's best.There is a minimum temperature requirement of [0°C] for this device.Packaging with Metal contains a device.There are 1 ports available for managing a variety of tasks on this device.There is a Panel, Through Hole mount on the part.The chip terminates at 15.This device operates at a temperature of -55°C~125°C.
L77DA15SF179 Features
15 basic kinds of terminations
D series
L77DA15SF179 Applications
There are a lot of Amphenol ICC (Commercial Products)
L77DA15SF179 D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
