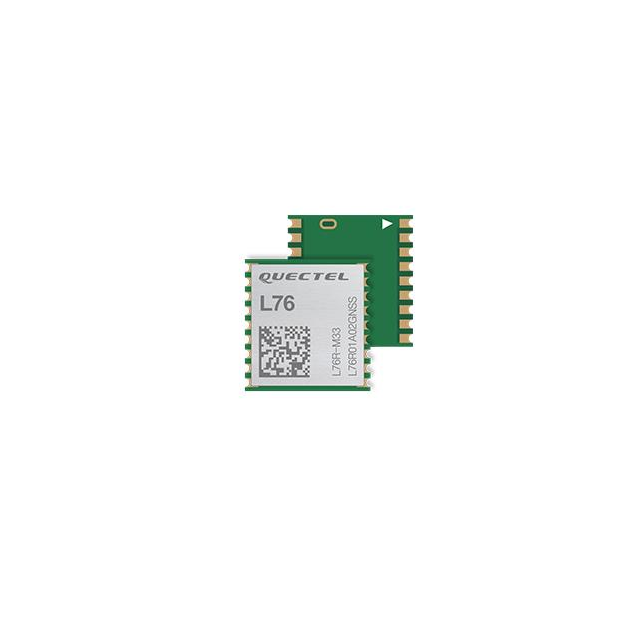

L76-M33

Manufacturer :

Quectel

Product Category :

RF Transceiver Modules and Modems

Screening Level :

Extended Industrial

Mounting Style :

SMD/SMT

Width :

9.7mm

JESD-30 Code :

R-XDMA-N18

Package / Case :

18-SMD Module

Operating Temperature :

-40 to 85 °C

Serial Interfaces :

I²C, UART

Dimensions :

10.1 x 9.7 x 2.5mm

Product Category :

GNSS / GPS Modules

Data Rate :

921.6kbps

Operating Supply Voltage :

2.8 V to 4.3 V

Number of Terminals :

18

Protocol :

BeiDou, Galileo, GLONASS, GPS, GNSS

Number of Channels :

33

Subcategory :

Wireless and RF Modules

Series :

-

Manufacturer :

Quectel

Minimum Operating Supply Voltage :

2.8 V

Interface Type :

UART

Tradename :

Wireless communication module

Surface Mount :

yes

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Height :

2.5mm

Seated Height-Max :

2.5 mm

Length :

10.1mm

Package Shape :

RECTANGULAR

Memory Size :

-

Reach Compliance Code :

Unknown

Antenna Type :

Antenna Not Included

Mounting :

Surface Mount

Base Product Number :

L76

Product Status :

Active

Terminal Form :

NO LEAD

Additional Feature :

HEIGHT CAPTURED NOMINAL

Telecom IC Type :

TELECOM CIRCUIT

Product Type :

GPS Modules

Current - Transmitting :

-

Typical Operating Supply Voltage :

2.5/3.3 V

Current - Receiving :

-

Maximum Operating Supply Voltage :

4.3 V

Terminal Position :

Dual

Frequency :

1575.42 MHz

Temperature Grade :

Industrial

RF Family/Standard :

Navigation

RoHS :

Details

Pin Count :

18

Utilized IC / Part :

-

Number of Functions :

1

Voltage - Supply :

2.8V ~ 4.3V

Mounting Type :

Surface Mount

Sensitivity :

-165dBm

Power - Output :

-

Packaging :

MouseReel

Maximum Operating Temperature :

+85 °C

Minimum Operating Temperature :

-40 °C

Modulation :

-

Brand :

Quectel
