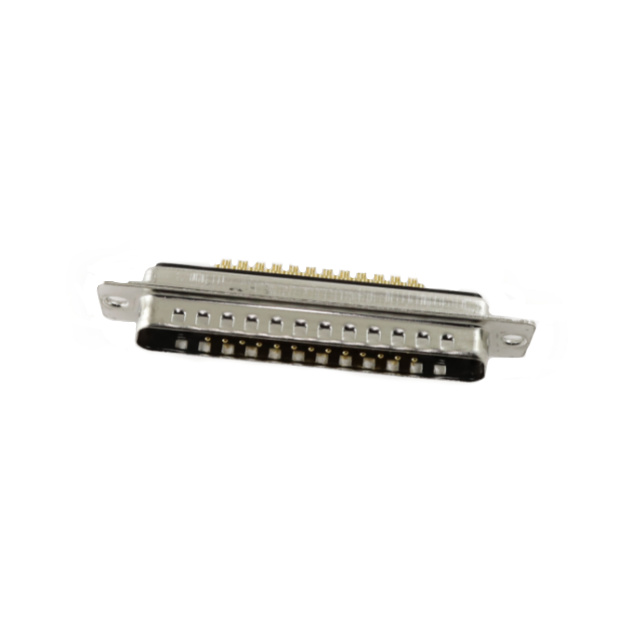

L717TWC27W2P
Or copy the link below:
- Mfr.Part #
- L717TWC27W2P
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 27POS PNL MNT
- Stock
- 43
- In Stock ：
- 43
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Shell Finish :
- Tin
- Voltage - Rated :
- 300V
- Dielectric Material :
- Thermoplastic
- Filter Feature :
- No
- Reach Compliance Code :
- Unknown
- RoHS Status :
- RoHS Compliant
- Total Number of Contacts :
- 27
- Packaging :
- Tray
- Contact Finish :
- Gold
- Series :
- TW
- Termination :
- Solder Cup
- Connector Type :
- Plug, Male Pins
- Length :
- 69.2mm
- Shell Material, Finish :
- Steel, Tin Plated
- Feature :
- Grounding Indents
- Contact Form :
- Machined
- Flange Feature :
- Housing/Shell (Unthreaded)
- Number of Positions :
- 27 (25 + 2 Coax or Power)
- ECCN Code :
- EAR99
- Mounting Type :
- Panel Mount
- Connector Style :
- D-Sub, Combo
- Number of Terminations :
- 27
- Contact Type :
- Signal and Coax or Power (Not Included)
- Empty Shell :
- No
- MIL Conformance :
- yes
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Current Rating :
- 7.5A
- Number of Ports :
- 1
- Operating Temperature :
- -55°C~155°C
- Pbfree Code :
- yes
- Contact Finish Thickness :
- 16.0μin 0.41μm
- Max Supply Voltage (AC) :
- 300V
- JESD-609 Code :
- e3
- DIN Conformance :
- No
- Mixed Contacts :
- yes
- HTS Code :
- 8536.69.40.30
- Shell Size, Connector Layout :
- 4 DC C - 27W2
- Contact Plating :
- Gold, Nickel
- Color :
- Black
- Contact Material :
- Brass
- IEC Conformance :
- No
- Insulation Material :
- POLYETHYLENE
- Orientation :
- Straight
- Factory Lead Time :
- 6 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging, Panel
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- Datasheets
- L717TWC27W2P
L717TWC27W2P Documents
TW Series D-Sub, Combo Plug, Male Pins 27 (25 + 2 Coax or Power)-Position Signal and Coax or Power (Not Included) Solder Cup 4 DC C - 27W2 Panel Mount Brass Gold Steel, Tin Plated
L717TWC27W2P Overview
The packaging contains Plug, Male Pins.This device is mounted in the Panel Mount position.It has been determined that a Tray case is necessary to package the product.There is a product in the TW Series.The device has 1 ports that can be used to manage a variety of tasks.There are a number of advantages to its Grounding Indents feature.Part Free Hanging, Panel is mounted to the part.The chip is terminated with a 27.As a result, the device runs at -55°C~155°C Operating Temperature.
L717TWC27W2P Features
27 basic kinds of terminations
TW series
L717TWC27W2P Applications
There are a lot of Amphenol ICC (Commercial Products)
L717TWC27W2P D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
