L712AS

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Body Color :

Silver, Black

Published :

2001

Housing Material :

Thermoplastic

Option :

GENERAL PURPOSE

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Operating Temperature (Max) :

65°C

Pbfree Code :

yes

Rated Current (Power) :

5A

Contact Material - Plating :

Silver

Packaging :

Bulk

Length :

26.3mm

Contact Material :

COPPER ALLOY

Pin Diameter :

2.5 mm

Termination :

Solder Eyelet(s)

RoHS Status :

ROHS3 Compliant

Shielding :

Unshielded

Housing Color :

Black

Internal Switch(s) :

Single Switch, Normally Closed

Weight :

10.333316g

Orientation :

Straight

Ingress Protection :

IP68

Actual Diameter :

0.098 (2.50mm ID)

Voltage - Rated DC :

30V

Includes :

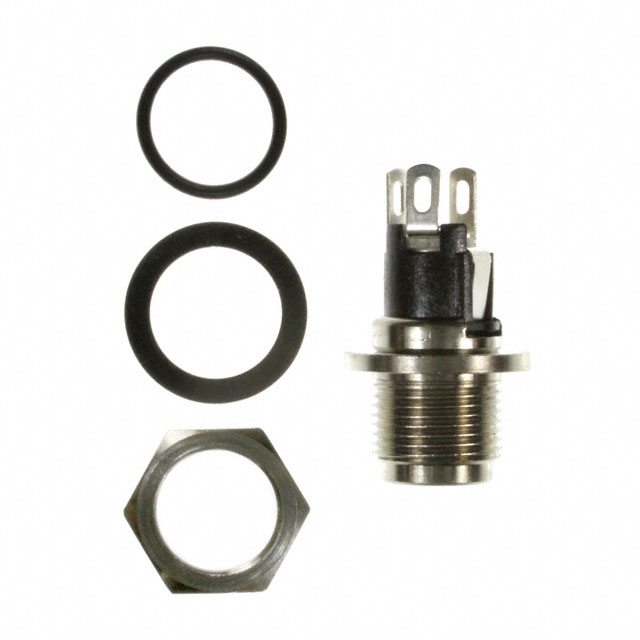

4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer

Connector Type :

JACK

Contact Plating :

Nickel, Silver

Gender :

Male

Mount :

Bulkhead, Front Side Nut, Panel

Mounting Type :

Panel Mount

REACH SVHC :

No SVHC

Number of Contacts :

3

Current Rating :

5A

JESD-609 Code :

e4

Mounting Feature :

Bulkhead - Front Side Nut

Body Material :

COPPER ALLOY

Feature :

Mounting Hardware, Thread Lock

Reference Standard :

NEMA

Operating Temperature (Min) :

-20°C

Thread Size :

7/16-32

Factory Lead Time :

8 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
